Summary
This comprehensive guide details custom rubber button design, focusing on three critical elements: shape, texture, and tactile feedback. The article covers material properties, manufacturing considerations, and solutions to common design challenges, helping engineers create high-performance rubber buttons for medical devices, industrial controls, and consumer electronics applications.
How to Design a Custom Rubber Button: Screenshot Checklist for Shape, Texture, and Tactile Feedback
A comprehensive guide to designing high-performance custom rubber buttons that deliver exceptional user experience and durability for your electronic devices.
Designing custom rubber buttons requires a careful balance of aesthetic appeal, functional performance, and manufacturing feasibility. Whether you're developing medical devices, industrial controls, consumer electronics, or automotive interfaces, the right rubber button design can significantly impact user experience and product success.
This comprehensive guide provides a detailed checklist approach to designing custom rubber buttons, with particular focus on three critical elements: shape, texture, and tactile feedback. We'll explore each component with practical examples and visual references to help you create buttons that not only look great but perform exceptionally in their intended application.
Understanding Rubber Button Fundamentals

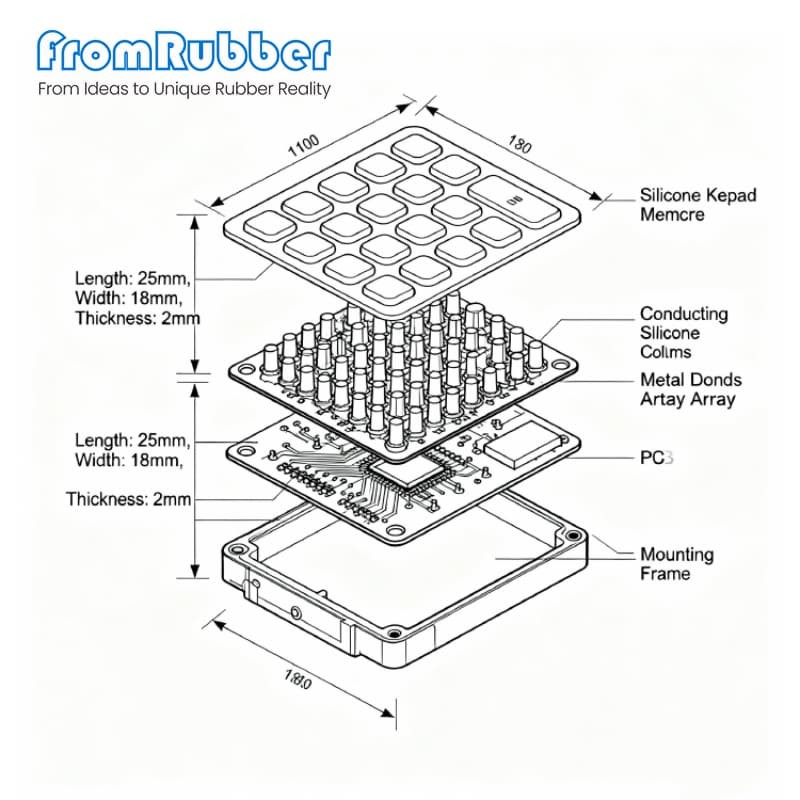

Before diving into the design specifics, it's essential to understand the basic components and materials used in rubber button manufacturing. Rubber buttons, typically made from silicone rubber, consist of several key elements:
The primary material for most custom rubber buttons is silicone rubber, chosen for its excellent physical properties including temperature resistance, durability, and flexibility. Silicone rubber can be formulated in various hardness levels (typically 30-80 Shore A) to achieve different tactile responses and can be colored to match specific brand requirements.
Key Material Considerations
Designing Button Shape: Form Follows Function
The shape of your rubber button significantly impacts both aesthetics and usability. Well-designed button shapes guide user interaction, prevent accidental presses, and contribute to overall product ergonomics.
Shape Design Checklist
Shape Design Considerations
- Ergonomic Contouring: Design shapes that fit naturally with finger anatomy. Concave surfaces often provide better contact and comfort than flat surfaces.
- Size and Spacing: Ensure adequate button size (minimum 8mm diameter for fingertip operation) and spacing (minimum 2mm between buttons) to prevent accidental presses.
- Travel and Actuation: Design appropriate travel distance (typically 0.3-1.0mm) and consider the relationship between button shape and required actuation force.
- Visual Differentiation: Use distinct shapes for different functions (e.g., circular for standard buttons, rectangular for directional controls, unique shapes for critical functions).
- Manufacturing Constraints: Consider draft angles (1-3° typically required), undercuts, and other manufacturing limitations when finalizing shapes.
Mastering Surface Texture
Texture plays a crucial role in both the aesthetic appeal and functional performance of rubber buttons. The right texture can enhance grip, provide visual interest, and help users distinguish between different buttons without looking.
Texture Design Checklist
Texture Selection Factors
- Grip Enhancement: Textured surfaces improve finger traction, especially important in medical or industrial environments where users may wear gloves.
- Visual Appeal: Texture can create visual interest and help integrate buttons with overall product aesthetics.
- Tactile Differentiation: Use different textures to help users distinguish between button functions without visual confirmation.
- Durability Considerations: Finer textures may wear more quickly than coarser patterns in high-use applications.
- Manufacturing Method: Consider whether texture will be molded-in, laser-etched, or applied as a secondary operation.
Optimizing Tactile Feedback
Tactile feedback is arguably the most critical aspect of rubber button design, directly impacting user experience and perception of quality. Well-designed tactile response provides confirmation of activation without requiring excessive force.
Tactile Feedback Design Checklist
Tactile Response Considerations
- Actuation Force: Design appropriate force requirements (typically 100-300g) based on user demographics and application context.
- Travel Distance: Optimize button travel (typically 0.3-1.0mm) to balance responsiveness with physical feedback.
- Snap Ratio: Aim for appropriate snap ratio (tactile peak force divided by initial force, typically 1.3-2.0) to create satisfying tactile response.
- Audible Feedback: Consider whether an audible click is desirable for your application and design accordingly.
- Consistency: Ensure consistent tactile response across all buttons in an array to maintain quality perception.
The Complete Design Process
Successfully designing custom rubber buttons requires a systematic approach that balances user needs, technical requirements, and manufacturing constraints. Follow this proven process to ensure optimal results.
1. Requirements Analysis
Define user needs, environmental conditions, operational requirements, and aesthetic goals. Document force requirements, expected lifecycle, and any regulatory compliance needs.
2. Conceptual Design
Create initial concepts exploring different shapes, textures, and tactile approaches. Develop 2-3 distinct directions for evaluation against requirements.
3. Detailed Engineering
Develop complete 3D models with proper draft angles, wall thickness, and manufacturing considerations. Create detailed drawings with tolerances.
4. Prototype and Testing
Fabricate functional prototypes using silicone molding. Conduct rigorous testing for tactile response, durability, and environmental performance.
5. Design Refinement
Incorporate feedback from prototype testing. Fine-tune shapes, textures, and tactile characteristics based on user feedback and performance data.
6. Production Tooling
Create production molds based on finalized design. Implement quality control procedures to ensure consistency in mass production.
Common Design Challenges and Solutions
Even with careful planning, rubber button design presents specific challenges. Understanding these common issues and their solutions can save time and prevent costly revisions.
Material Selection Guide
Choosing the right rubber material is critical to achieving the desired performance characteristics. Different formulations offer varying properties suited to specific applications and environments.
Conclusion: Designing Exceptional Rubber Buttons
Creating successful custom rubber buttons requires meticulous attention to three interconnected elements: shape, texture, and tactile feedback. By following the comprehensive checklists and guidelines presented in this article, you can design buttons that not only meet functional requirements but also deliver superior user experiences.
Remember that the most effective designs emerge from iterative prototyping and testing. Engage with manufacturing partners early in the process to ensure your designs are both innovative and producible. With careful consideration of each design element and its impact on the final user experience, you can create custom rubber buttons that enhance your product's performance, durability, and market appeal.
Whether you're designing for consumer electronics, medical devices, industrial controls, or specialized applications, the principles outlined in this guide will help you navigate the complexities of rubber button design and achieve optimal results that balance aesthetics, functionality, and manufacturability.
