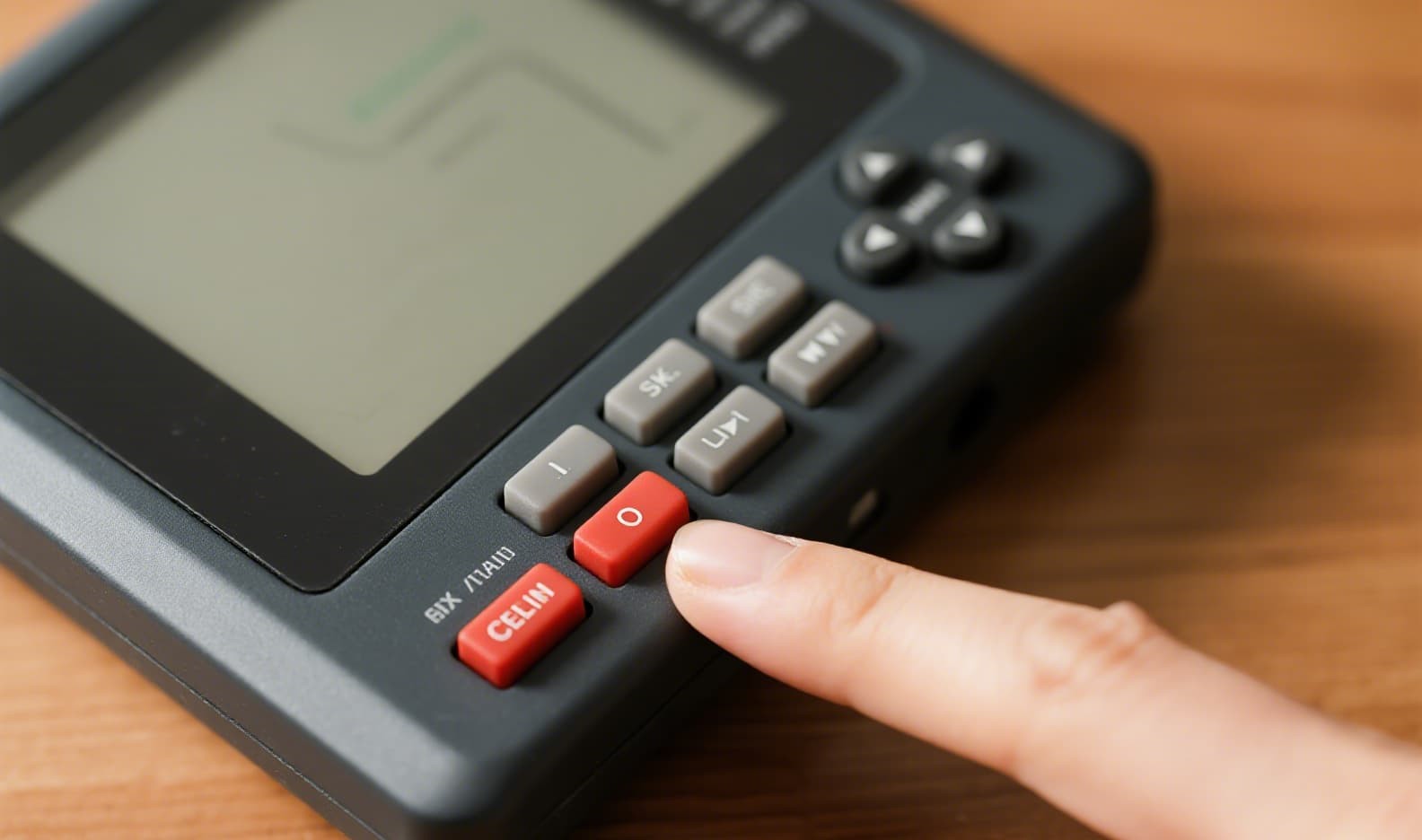

Silicone Keypad Sticking? You Might Have Overlooked That 0.1mm Gap Clearance

Silicone Keypad Sticking? You Might Have Overlooked That 0.1mm Gap Clearance

Many engineers, when developing new products, tend to design the fit between the silicone keypad and the plastic housing opening as tight as possible—pursuing a sleek appearance and better dust protection. But once the molds are cut and the samples return, an awkward reality sets in: the keypad feels rough when pressed, produces an unpleasant squeaking noise, or even jams completely under high-temperature summer conditions. This not only compromises user experience but can also lead to the scrapping of entire batches of housings and silicone components.

Technical Breakdown

The root cause lies in neglecting the physical properties of silicone rubber. Unlike rigid thermoplastics (such as ABS or PC), silicone is an elastomer. Its dimensions are subject to minor variations due to temperature, pressure, and batch-to-batch material tolerances.

According to standard design guidelines for custom silicone keypad molding, the clearance between the key and the housing opening must be properly allocated—typically 0.1 mm to 0.2 mm per side. This seemingly minimal gap is, in fact, the lifeline that allows the keypad to "breathe" and move freely.

• Clearance too small (< 0.1 mm): When the silicone key is compressed, its sidewalls expand outward. Without sufficient space, the expanding sidewalls rub aggressively against the inner wall of the housing, causing sticking, squeaking, or even complete seizure.
• Clearance too large (> 0.3 mm): While this prevents sticking, it allows the key to wobble within the opening, making it easier for dust and liquids to ingress—compromising the product’s IP rating and long-term reliability.

A Real‑World Silicone Case

A client manufacturing smart home control panels designed a minimalist wall switch. For aesthetic reasons, they specified a unilateral clearance of just 0.05 mm between the 12 mm diameter round silicone key and the housing opening. During testing in a 25°C air-conditioned lab, the feel was acceptable. However, when the products were shipped to the Middle East—where ambient temperatures routinely exceed 40°C—they were flooded with customer complaints of "non-responsive keys."

Root cause analysis: The elevated temperature caused the silicone to expand slightly. The 0.05 mm gap was insufficient to accommodate this thermal expansion, causing the key's sidewalls to grip the housing wall tightly. The coefficient of friction spiked, and the user's pressing force could no longer overcome the resistance—resulting in a classic "sticking" failure.

Design Solutions

To avoid such pitfalls, follow these principles during the structural design phase:

1. Adhere to standard clearance tolerances: In your 3D stack‑up, ensure the silicone key top is 0.1 mm to 0.2 mm smaller per side than the housing opening. For example, for a 10 mm housing hole, design the key top at 9.6 mm to 9.8 mm.
2. Incorporate draft angle: Apply a 3° to 5° draft angle on the key's side surfaces, creating an inverted taper (wider at the bottom, narrower at the top). This reduces the contact area and ensures smoother actuation.
3. Apply a surface coating (tactile feel oil): If extremely tight clearance is mandatory for aesthetic reasons, consider spraying a PU (polyurethane) tactile feel oil on the silicone surface to lower the coefficient of friction. Note that this will add cost to the final product.

Quick Reference Table

Final Word

Need a silicone keypad design check? Our engineering team can review your 3D files and recommend optimal clearances – no obligation.
