Silicone Keypad vs. Membrane Switch

Choosing the Perfect Control Interface for Your Panel Design

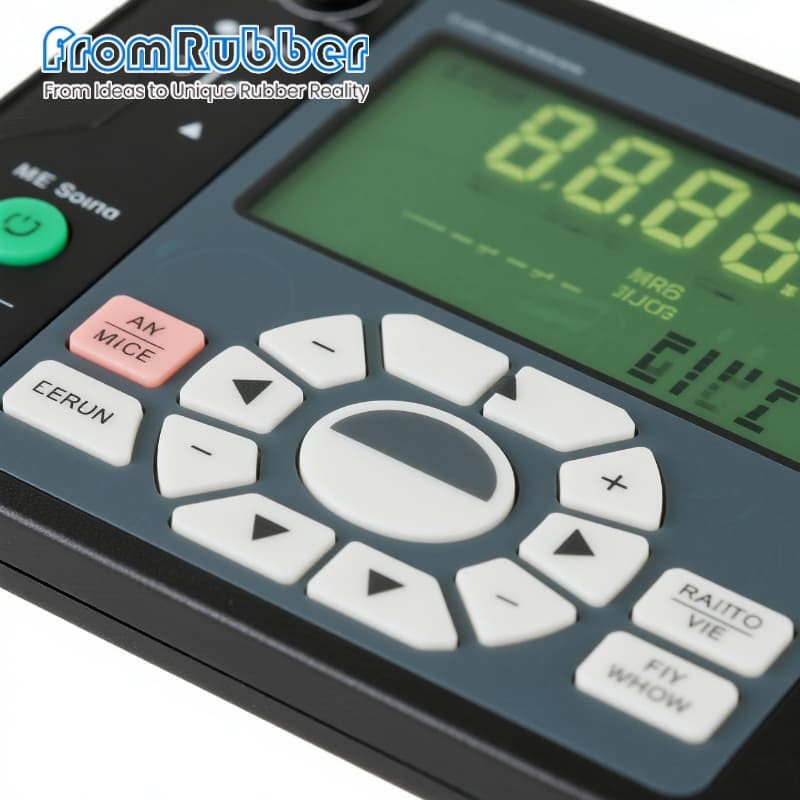

Silicone keypad in industrial control panel application

Understanding Control Panel Interface Technologies

In the world of human-machine interfaces (HMI), the choice between silicone keypads and membrane switches represents a critical decision that impacts durability, user experience, and overall product performance. Both technologies serve the fundamental purpose of translating user input into electrical signals, but they achieve this through different mechanical and electrical principles.

This comprehensive guide will explore the intricate details of both technologies, providing engineering teams and product designers with the knowledge needed to make informed decisions for their specific applications.

Fundamental Operating Principles

Silicone Keypad Mechanism

Silicone keypads operate through a precise mechanical system that combines elastomeric properties with electrical conductivity. The fundamental components include:

Close-up of conductive carbon pill on silicone keypad

Conductive Pill Structure: Each silicone button features a small, conductive puck on its underside, most commonly manufactured from carbon-impregnated silicone. This "carbon pill" provides the electrical pathway when compressed against the PCB contacts.

PCB Contact Pattern: Directly beneath the keypad, the printed circuit board contains a precisely engineered pattern of interlocking electrical contacts that correspond to each button position.

Actuation Process: When force is applied to a key, the flexible silicone webbing strategically deforms, pushing the conductive pill downward until it bridges the gap between the PCB contacts.

Signal Generation: The physical connection established by the conductive pill completes the electrical circuit, sending a clear signal to the device's microprocessor, which then executes the corresponding command function.

Return Mechanism: Upon release of pressure, the inherent elasticity of the silicone material causes the webbing to spring back to its original position, lifting the conductive pill away from the PCB and breaking the circuit connection.

Membrane Switch Technology

Membrane switches represent a layered approach to interface design, utilizing flexible printed circuits encapsulated between protective layers. The technology consists of:

Multi-Layer Construction: Typically composed of polyester (PET) or polycarbonate films, membrane switches feature a graphic overlay, spacer layer with cutouts, and printed circuitry.

Actuation Method: Unlike the physical deformation of silicone, membrane switches rely on the flexibility of the top circuit layer, which is pressed through spacer cutouts to contact the bottom layer.

Tactile Enhancement: For applications requiring physical feedback, metal or polyester domes can be incorporated between layers to provide a distinct "snap" feel during actuation.

Exploded view of membrane switch layer construction

Technical Comparison: Silicone Keypad vs. Membrane Switch

Feature Silicone Keypad Membrane Switch
Tactile Feedback Natural tactile response from silicone compression and webbing design Requires additional dome switches for tactile feel; otherwise, minimal feedback
Environmental Sealing Inherently sealed against dust, moisture, and contaminants Sealed by design with adhesive layers; excellent environmental protection
Durability Excellent mechanical life (1-5 million cycles); resistant to harsh conditions Good lifespan (1-10 million cycles with domes); vulnerable to punctures
Profile/Thickness Higher profile due to key travel distance requirements Extremely low profile; ideal for slim devices
Customization Options Wide range of colors, shapes, and tactile feels; embossing possible Full-color graphics, transparent windows, complex patterns
Cost Considerations Higher tooling costs; cost-effective for medium to high volumes Lower tooling costs; economical for both low and high volumes
Actuation Force Typically 150-400g; customizable through webbing design Varies widely with dome selection (100-800g typical)
Temperature Resistance Excellent (-40°C to +200°C); suitable for extreme environments Good (-30°C to +85°C); limited by adhesive and graphic materials
Gold plated conductive pills for low resistance applications

Advanced Technical Considerations

When designing with silicone keypads, the choice of conductive pill material significantly impacts performance. Carbon-impregnated silicone offers excellent durability and cost-effectiveness for most applications. However, for specialized applications requiring extremely low contact resistance or enhanced signal integrity, gold-plated pills provide superior electrical characteristics.

The PCB contact design must be precisely engineered to match the conductive pill geometry. Interlocking finger patterns ensure reliable contact regardless of slight misalignments or uneven pressing force. The contact surface finish, typically gold flash over nickel plating, maintains low resistance and prevents oxidation over the product lifespan.

Application-Specific Selection Guidelines

When to Choose Silicone Keypads

Industrial Controls

Manufacturing equipment, process controls, and heavy machinery benefit from silicone keypads' durability, tactile feedback, and environmental sealing.

Medical Devices

Medical equipment requires the cleanability, chemical resistance, and reliable tactile feedback that silicone keypads provide.

Outdoor Equipment

Applications exposed to weather, temperature extremes, and UV radiation benefit from silicone's environmental stability.

Consumer Products

Premium consumer electronics where distinct tactile response and durability are key selling points.

When to Choose Membrane Switches

Consumer Electronics

Television remotes, kitchen appliances, and office equipment where low profile and cost efficiency are critical.

Medical Diagnostic Equipment

Devices requiring flat, cleanable surfaces with complex graphics and backlighting capabilities.

Instrumentation Panels

Test and measurement equipment where space constraints and graphic integration are important.

Automotive Controls

Secondary vehicle controls where sealed operation and custom graphics are required.

Design Implementation Best Practices

Silicone Keypad Design Guidelines

  • Ensure proper webbing thickness for desired tactile feel and actuation force
  • Design conductive pill geometry to match PCB contact patterns
  • Consider draft angles and undercuts for moldability
  • Specify appropriate silicone hardness (typically 40-70 Shore A)
  • Plan for proper alignment and mounting features

Membrane Switch Design Guidelines

  • Determine appropriate graphic overlay material thickness
  • Design circuit traces with proper spacing and current capacity
  • Select adhesive thickness to ensure proper dome operation
  • Specify embossing requirements for tactile orientation
  • Plan for connector type and tail routing

Make the Right Choice for Your Application

The decision between silicone keypads and membrane switches involves careful consideration of your specific requirements for tactile feedback, environmental conditions, lifespan expectations, and budget constraints.

Both technologies offer distinct advantages that can significantly impact user experience, product reliability, and overall success in the marketplace.
