Summary
The production route behind silicone rubber keypads, the variable each stage locks in, why compound selection matters more than hardness, where the cost actually sits between tooling and finishing, and what to inspect before release.
Most quality problems in a keypad are decided before the first shot and discovered after the last one. Understanding the production route makes clear which decisions are still open at each stage, and which have already become expensive.
This is the sequence behind silicone rubber keypads, from drawing to shipment, with the one thing each step locks in.
What Does the Production Route for Silicone Rubber Keypads Actually Look Like?
The direct answer: six stages, and each one freezes a different variable. Tool design fixes the geometry and the finish. Compound selection fixes the temperature range and the feel. Moulding fixes the thickness distribution and the cosmetic grade. Finishing fixes the legend and the backlight. Inspection fixes what the customer will accept. Assembly and packing fix how it arrives.
Buyers usually spend most of their time on the sixth stage, price, while the first four decide whether the part works. That is the wrong allocation of attention.
What Each Stage Locks In
The pattern is consistent: the earlier the decision, the more expensive it is to revisit. That is the argument for spending the design review budget before the tool exists.
Read the table from the bottom up if the part is already in production. Assembly and packing are the only stages you can still change cheaply, which is why a line-stop investigation should start there rather than at the press.
Read it top-down if the project is new. Tool design caps everything that follows, and it is also the decision most often handed to a supplier without a written requirement attached.
| Stage | Decision made | Cost of changing it later |
|---|---|---|
| Tool design | Key geometry, web thickness, surface texture, gate position | New tool or cavity rework |
| Compound | Hardness, temperature range, colour, flame rating | New batch, possibly new validation |
| Moulding | Thickness distribution, flash, cosmetic grade | Process window or tool rework |
| Finishing | Legend method, backlight, adhesive | A secondary operation can usually be changed |
| Inspection | Acceptance criteria and sampling | Cheap to change, but it changes what you reject |
| Assembly and packing | How the part arrives at your line | Cheap, and frequently the cause of a line stop |
What Silicone Rubber Keypads Cost, and Where the Cost Sits
Four blocks again: tooling, compound, press time and finishing. The second and third are small on a standard panel; the first and fourth dominate. That is why two quotes for the same drawing can differ by a factor of two without either being dishonest: one has a single-cavity tool and a printed legend, the other a multi-cavity tool and laser etching.
The way to compare is to ask each supplier to break the quote into those four blocks. A quote that cannot be broken down cannot be compared, and the difference usually hides in cavity count.
Where the panel also needs a conductive layer, the build becomes a stack rather than a single moulding, and the cost moves to the assembly step. Our article on conductive silicone keypad buttons explains what that layer changes electrically, and the dome switch keypad page shows a typical backlit construction.
What Are Silicone Rubber Keypads?
Silicone rubber keypads are input devices made from silicone elastomer, a synthetic rubber known for its flexibility and resilience. They consist of a base mat with raised keys connected by thin webbing that deforms under pressure to create a tactile response. When pressed, the key activates a switch, often via conductive pills (like carbon or gold) that contact a printed circuit board (PCB).
These keypads are popular due to their ability to withstand harsh environments while offering customizable designs. Unlike rigid plastic keys, silicone provides a soft, ergonomic feel, making them ideal for frequent use.
The Manufacturing Process of Silicone Rubber Keypads
The production of silicone rubber keypads involves precision engineering to ensure durability and functionality. The most common methods are compression molding and liquid injection molding (LIM), which allow for high-volume production with consistent quality.
Step 1: Material Preparation
Silicone rubber starts as a liquid or gum stock material mixed with curing agents, pigments, and additives for color, hardness (typically 50-80 Shore A), and conductivity. Pigments enable multi-color designs, while conductive elements like carbon pills are prepared for integration.
Step 2: Tooling and Molding
- Tool Design: Custom molds are created using CNC milling or EDM for precise key shapes, webbing, and features like air channels.
- Compression Molding: Silicone is placed into a heated mold (150-250 tons of pressure) where heat and pressure cure it into shape. This process vulcanizes the material, transforming it from liquid to solid.
- Liquid Injection Molding (LIM): For complex designs, liquid silicone is injected into molds under high pressure, ideal for intricate features and high precision.
Step 3: Adding Conductive Elements
Conductive pills or domes (metal or carbon-infused) are co-molded or attached to the key base to enable electrical contact. This ensures low resistance (as low as 1 ohm for gold pills) and reliable switching.
Step 4: Surface Treatments and Printing
- Screen Printing or Laser Etching: Legends, symbols, or colors are applied using silicone-compatible inks. Laser etching removes top layers for backlit effects.
- Coatings: PU or epoxy coatings enhance durability, abrasion resistance, and aesthetics. Spray coatings provide a matte or glossy finish.
Step 5: Quality Control and Testing
Keypads undergo rigorous tests for actuation force, tactile snap ratio (40-60% recommended for optimal feel), lifespan (millions of cycles), and environmental resistance. This includes alcohol abrasion tests, lifetime beating tests, and dimensional inspections.
The entire process is cost-effective for bulk production, with mold costs offset by long-term durability.
[Image 1 Placeholder: Diagram of the Silicone Rubber Keypad Manufacturing Process – Showing steps from material mixing to final molding.]
Key Advantages of Silicone Rubber Keypads
Silicone rubber keypads offer numerous benefits over alternatives like plastic or membrane switches, making them a top choice for demanding applications.
- Durability and Environmental Resistance: They withstand extreme temperatures (-60°C to 250°C), UV light, chemicals, moisture, and dust. This makes them ideal for outdoor or industrial use.
- Tactile Feedback and Ergonomics: The webbing design provides a satisfying "snap" feel, customizable via snap ratio and hardness. Users experience comfortable, quiet operation without noise.
- Customization Options: Available in various shapes, colors, hardness levels, and backlighting (LED, EL, or fiber optic). Features like P+R (plastic + rubber) hybrids add rigidity.
- Waterproof and Easy to Clean: Inherently sealed (IP66/NEMA compliant), they resist liquids and can be sanitized easily, perfect for medical or food industries.
- Cost-Effectiveness: Low unit costs in high volumes, with excellent longevity reducing replacement needs.
- Shock and Vibration Resistance: As an insulator, silicone absorbs impacts, ensuring reliability in automotive or aerospace settings.
| Advantage | Description | Benefit |
|---|---|---|
| Durability | Resists heat, chemicals, UV | Long lifespan in harsh environments |
| Tactile Feedback | Customizable snap ratio | Improved user experience |
| Customization | Multi-color, backlit designs | Branding and functionality |
| Waterproofing | Sealed against moisture | Suitable for wet conditions |
| Cost-Effective | Efficient manufacturing | Affordable for bulk orders |
These advantages position silicone keypads as a versatile, reliable solution.

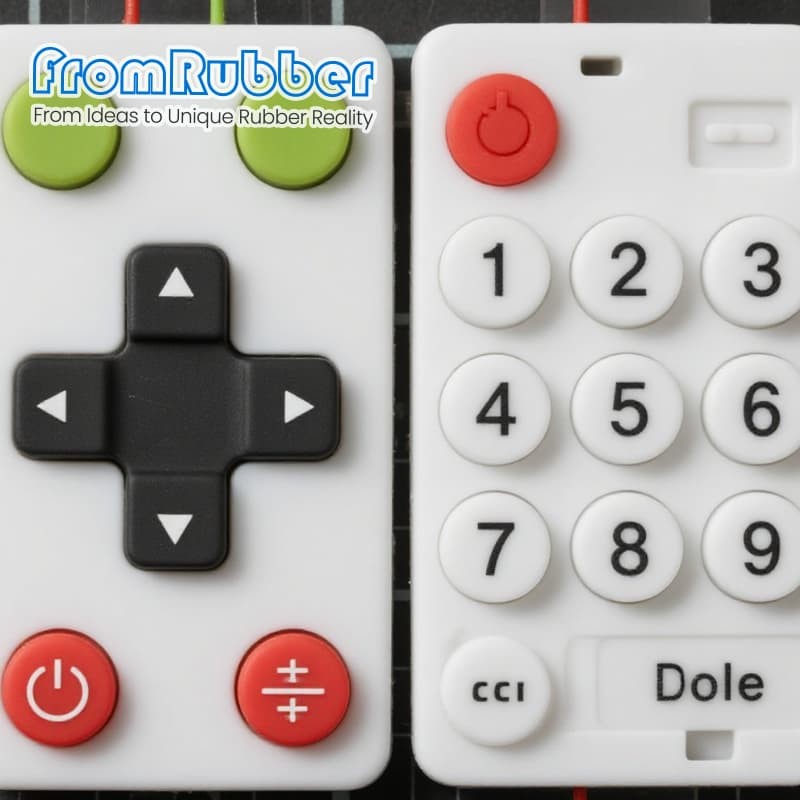

[Image 2 Placeholder: Close-Up of a Custom Silicone Rubber Keypad – Highlighting multi-color keys and conductive pills.]
Applications of Silicone Rubber Keypads
Silicone rubber keypads are used across industries due to their robustness and adaptability.
- Consumer Electronics: Remote controls, gaming controllers, and appliances benefit from tactile, customizable designs.
- Medical Devices: Biocompatible and easy-to-clean keypads are used in monitors, pumps, and diagnostic tools.
- Industrial and Automotive: Control panels, steering wheel buttons, and machinery interfaces handle vibration and chemicals.
- Aerospace and Defense: Extreme temperature resistance suits avionics and military equipment.
- Other Sectors: Agriculture, rail transit, and marine applications leverage waterproofing and durability.
For custom applications, factors like actuation force, travel distance, and environmental specs are tailored during design.
[Image 3 Placeholder: Applications of Silicone Rubber Keypads – Montage showing use in medical, industrial, and consumer devices.]
Why Compound Selection Decides More Than Hardness
Hardness is the number everyone asks for and the least informative. Two compounds at the same durometer can differ by a wide margin in compression set, tear strength and low-temperature flexibility, and those three decide how the keypad behaves in year three.
A panel that will be cleaned with solvent needs a compound selected for that chemistry, not a general-purpose grade with a resistant-sounding name. A panel in a cold store needs low-temperature flexibility, because a compound that stiffens at zero degrees raises actuation force exactly when the operator is wearing gloves.
The Three Checks That Reveal a Compound Problem Early
- Post-cure odour. A strong smell on opening the bag suggests an incomplete cure and predicts compression set.
- Tear at the key root. Flex one key back gently; a clean tear instead of a stretch points at a compound or a web that is too thin.
- Colour drift across a batch. Visible variation between panels in one lot usually means pigment dispersion was inconsistent.
Design Considerations for Custom Silicone Keypads
When designing silicone rubber keypads, consider:
- Snap Ratio and Actuation Force: Balance tactile feel with lifespan.
- Hardness and Webbing: Affect flexibility and feedback.
- Backlighting and Legends: Enhance visibility in low-light conditions.
- Integration: Combine with PCBs or membrane switches for hybrid solutions.
Consult manufacturers for 3D modeling and prototyping to optimize performance.
Frequently Asked Questions
How long does it take to produce a silicone rubber keypad order?
Bulk production is usually short compared with the two stages before it: tool making and first article approval. Plan the schedule around tool release and sample approval, and treat the moulding run as the quick part.
Can the legend be changed without a new tool?
Yes, if it is printed or laser etched, because both are secondary operations. A double-shot legend is part of the tool and cannot be changed without cavity work.
What causes flash on a keypad panel?
Flash comes from tool wear at the shut-off, from insufficient clamp force, or from a compound with lower viscosity than the tool was designed for. It is a process symptom rather than a material defect, which is why the same compound in a worn tool produces more of it.
