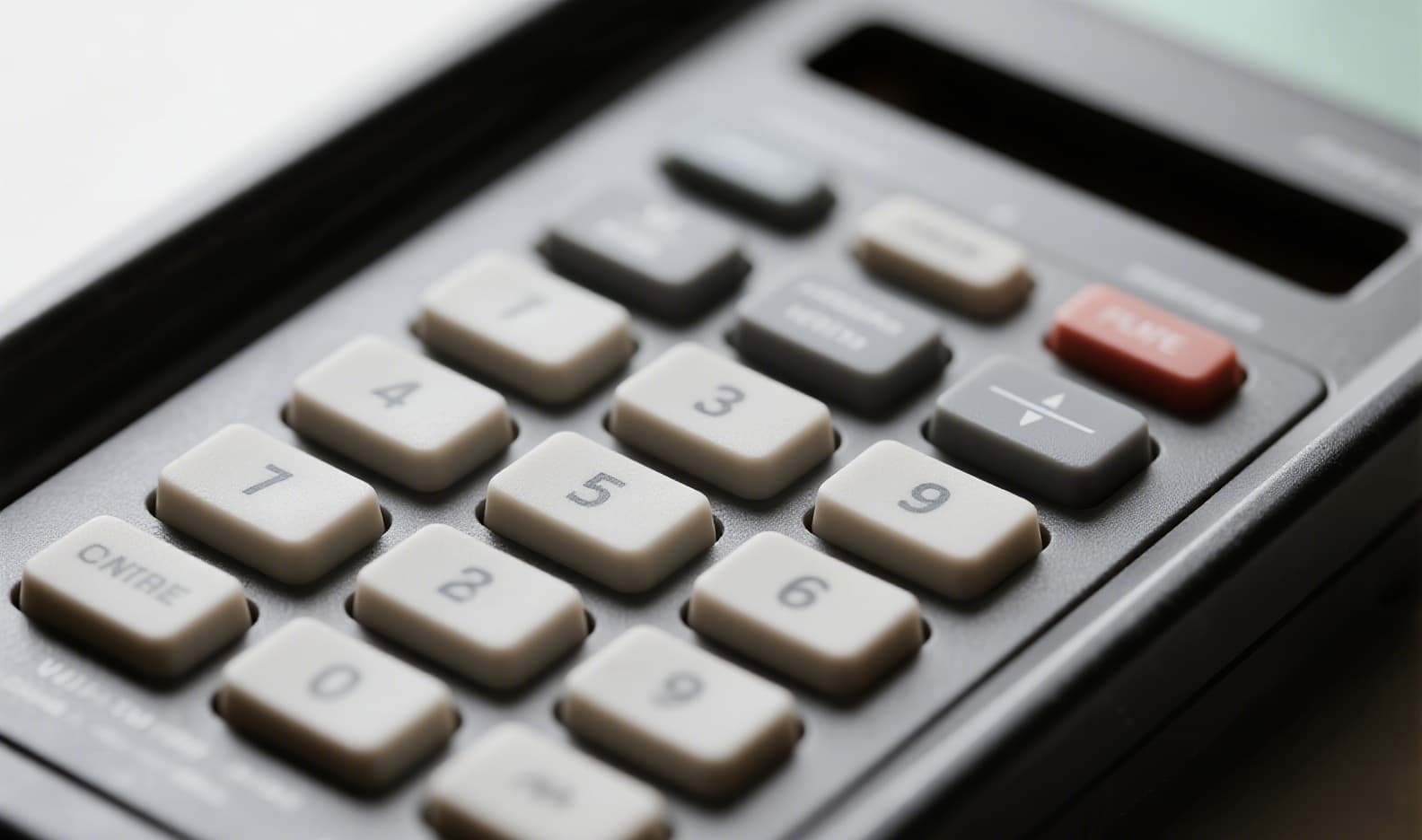

What is the typical shrinkage rate of a molded silicone keypad, and how should I account for it in panel design?
- Share
- publisher
- Suey
- Issue Time
- Aug 14,2026
Summary
Silicone keypad shrinkage typically ranges 1.5–3.5% depending on material (LSR vs HCR). Panel design must use cooled dimensions plus 0.15–0.30mm clearance per side. Proper mould oversizing and post-cure stabilisation ensure correct fit. FromRubber provides shrinkage-adjusted moulding.
Silicone keypads shrink after moulding due to the crosslinking reaction and subsequent cooling. This shrinkage is not an error – it is a predictable physical phenomenon that must be accounted for during mould design and panel layout. Failing to compensate for shrinkage leads to misalignment between the keypad and the panel opening, resulting in poor fit, binding, or excessive clearance.
- Liquid Silicone Rubber (LSR): Typically 1.5–2.5% linear shrinkage, lower and more consistent than HCR.
- High‑Consistency Rubber (HCR): 2.0–3.5% linear shrinkage, varies with filler loading and cure system.
- Custom compounds: Fillers (silica, carbon black) reduce shrinkage; low‑filler grades shrink more.
- Post‑cure effect: Additional 0.3–0.5% shrinkage after secondary baking (200°C for 2–4 hours).
- Keypad‑to‑panel gap: Allow 0.15–0.30 mm per side for nominal fit; 0.30–0.50 mm for flexible installation.
- Key spacing: Apply shrinkage factor to the centre‑to‑centre distance between keys.
- Locating features: Use pins or ribs in the panel to constrain the keypad after shrinkage.
- Mould compensation: Oversize the mould by the expected shrinkage (e.g., 2% oversized for LSR).
Silicone Keypad Shrinkage by Material Type and Cure System
| Material Type | Cure System | Linear Shrinkage (%) | Post-Cure Shrinkage (%) | Batch Variation (±%) |
|---|---|---|---|---|
| LSR (Platinum‑cured) | Addition‑cure | 1.5 – 2.5 | 0.3 – 0.4 | 0.15 |
| HCR (Peroxide‑cured) | Free‑radical | 2.0 – 3.5 | 0.4 – 0.6 | 0.25 |
| LSR + High Filler (e.g., 30% silica) | Addition‑cure | 1.2 – 1.8 | 0.2 – 0.3 | 0.12 |
| HCR + Low Filler | Peroxide‑cure | 2.8 – 3.8 | 0.5 – 0.7 | 0.30 |
| Fluorosilicone (FVMQ) | Peroxide‑cure | 2.0 – 3.0 | 0.4 – 0.5 | 0.20 |
Step‑by‑Step Shrinkage Compensation Process
- Step 1 – Determine material shrinkage: Obtain the supplier's typical shrinkage data for the specific compound and cure system.
- Step 2 – Apply to mould design: Oversize the mould cavity by the linear shrinkage factor (e.g., 2.0% for LSR). Use 3D mould flow simulation to validate.
- Step 3 – Account for anisotropic shrinkage: Shrinkage may differ in the flow direction vs. transverse direction. Measure both if using HCR.
- Step 4 – Design the panel opening: Use the final cooled dimension of the keypad, not the moulded‑hot dimension. Add clearance (0.15–0.30 mm per side).
- Step 5 – Validate with a test mould: Run a sample batch, measure the cooled parts, adjust the mould if needed, and confirm panel fit.
- Step 6 – Document and control: Include shrinkage in the process control plan; monitor batch‑to‑batch variation with Cpk ≥ 1.67.
Other Factors That Affect Silicone Keypad Shrinkage
- Mould temperature: Higher mould temperatures reduce shrinkage by promoting more complete crosslinking.
- Curing time: Insufficient curing leaves unreacted material that shrinks more after demoulding.
- Part geometry: Thicker sections shrink more than thin sections due to different cooling rates.
- Gate location: Shrinkage is often higher near the gate due to molecular orientation.
- Post‑cure: Always bake the parts at 200°C for 2 hours to stabilise dimensions before measurement.
At FromRubber, we provide full shrinkage compensation data for every compound we use. Our mould design includes shrinkage‑adjusted cavities, and we validate each tool with a dimensional FAI that reports both moulded‑hot and cooled‑final measurements. We also offer panel layout guidance to ensure your final assembly fits correctly – every time.
Summary – Practical Rules of Thumb
- LSR: Plan for 1.5–2.5% linear shrinkage; oversize the mould by that factor.
- HCR: Plan for 2.0–3.5%; use a test mould to validate anisotropic behaviour.
- Panel opening: Use the cooled keypad dimension + 0.15–0.30 mm clearance per side.
- Locating features: Add pins or ribs in the panel to ensure the keypad stays aligned after shrinkage.
- Documentation: Always report shrinkage on the keypad drawing and include it in the control plan.
✓ FromRubber provides shrinkage‑adjusted mould designs and panel fit recommendations with every keypad project. We help you avoid costly fit issues by accounting for shrinkage from the first design iteration.
