When the Elements Attack – How Silicone Keypads Defend Industrial Instruments

The hidden war against moisture, vibration, and chemical vapors — and why metal contacts keep losing

Industrial instrumentation lives in a world of extremes. High humidity, condensing moisture, chemical splashes, temperature cycling, and constant vibration — these are not exceptions; they are the daily reality for pressure transmitters, flow meters, temperature controllers, and analytical instruments placed in the field. And while modern electronics have become remarkably robust, the human interface — the buttons and keypads that operators rely on — remains a persistent weak link.

The failure pattern is almost universal. A new instrument is installed. The metal-dome keypad works flawlessly for a few months. Then, gradually, the buttons become "soft" — requiring harder presses. Soon, certain keys become intermittent. Eventually, the calibration button or the emergency stop refuses to respond at all. A work order is created, the keypad assembly is replaced, and the cycle begins anew.

The root cause is almost always the same: metal contact degradation. Whether it is gold-plated domes, nickel-plated discs, or silver‑palladium contacts, the exposed metal surfaces are vulnerable to oxidation, sulphidation, chloride attack, and mechanical wear from repeated actuation. The result is increasing contact resistance, leading to signal failure. There is, however, a proven alternative that eliminates the exposed metal entirely: the silicone keypad.

The chemistry of contact failure

When a metal dome switch is actuated, the dome flexes and a small contact dimple makes connection with the PCB pad. This wiping action, while beneficial in clean environments, actually accelerates corrosion in aggressive atmospheres. Microscopic abrasion removes the protective oxide layer, exposing fresh metal that immediately reacts with ambient sulphur dioxide, hydrogen sulphide, or chlorine compounds. The resulting metal sulphides and chlorides are poor conductors — contact resistance can climb from 10 milliohms to several ohms or even megaohms within months.

This is not a materials quality issue — even gold plating, with its high corrosion resistance, eventually fails under conditions of high humidity and acidic vapors because the plating is often porous at the microscopic level. Once the underlying nickel or copper layer is exposed, galvanic corrosion accelerates the process.

Why Silicone Keypads Eliminate the Corrosion Problem

A silicone keypad operates on a fundamentally different principle. Instead of using a moving metal dome, it incorporates a conductive silicone pill — typically a carbon‑filled or gold‑loaded elastomer — that is molded as an integral part of the keypad. When the operator presses the key, the silicone pill compresses and bridges two interdigitated contacts on the PCB. When released, the natural resilience of the silicone returns the pill to its resting position, opening the circuit.

The key difference is this: there is no exposed metal in the contact zone. The conductive pill is sealed within the silicone matrix, and the circuit traces on the PCB can be gold‑plated, but they are physically separated from the ambient atmosphere by the silicone membrane itself. This means that SO₂, NOx, chlorine, humidity, and dust particles never reach the actual contact interface. The switching element is effectively hermetically encapsulated.

Field performance: what the data shows

Independent testing and field data consistently demonstrate the superiority of silicone keypads in demanding industrial environments. In mixed‑gas corrosion tests (ASTM B845‑95, Class A), metal‑dome keypads typically show a 50% increase in contact resistance after just 500 hours of exposure to 10 ppm SO₂, 10 ppm NO₂, and 10 ppm Cl₂ at 75% RH. In contrast, silicone keypad assemblies with encapsulated conductive pills maintain resistance values within 5% of initial readings — even after 2,000 hours of the same exposure.

Field data from power plants and chemical facilities shows that silicone keypad retrofits consistently yield a mean time between failures (MTBF) of 8 to 12 years — compared to 8 to 18 months for typical metal‑dome assemblies. This is not a small improvement; it is a complete transformation of the instrument's maintainability profile.

Beyond corrosion: vibration, shock, and thermal cycling

Silicone keypads offer additional advantages that are often overlooked. The silicone elastomer acts as a natural damper for mechanical vibration and shock — a critical benefit in pump stations, compressor skids, and offshore platforms where constant low‑frequency vibration can cause fatigue failure of metal springs and dome contacts. The silicone membrane also accommodates thermal expansion and contraction of the PCB and housing without losing alignment, reducing stress on solder joints and contact pads.

Furthermore, the integrated sealing design of a silicone keypad provides IP66, IP67, or even IP69K protection when properly mounted. This means that high‑pressure washdowns, dust storms, and temporary submersion do not compromise the switch function. Metal‑dome keypads, by contrast, often require separate sealing boots that add cost and complexity — and which themselves can fail or become brittle over time.

---

FromRubber – engineered for the harshest industrial environments

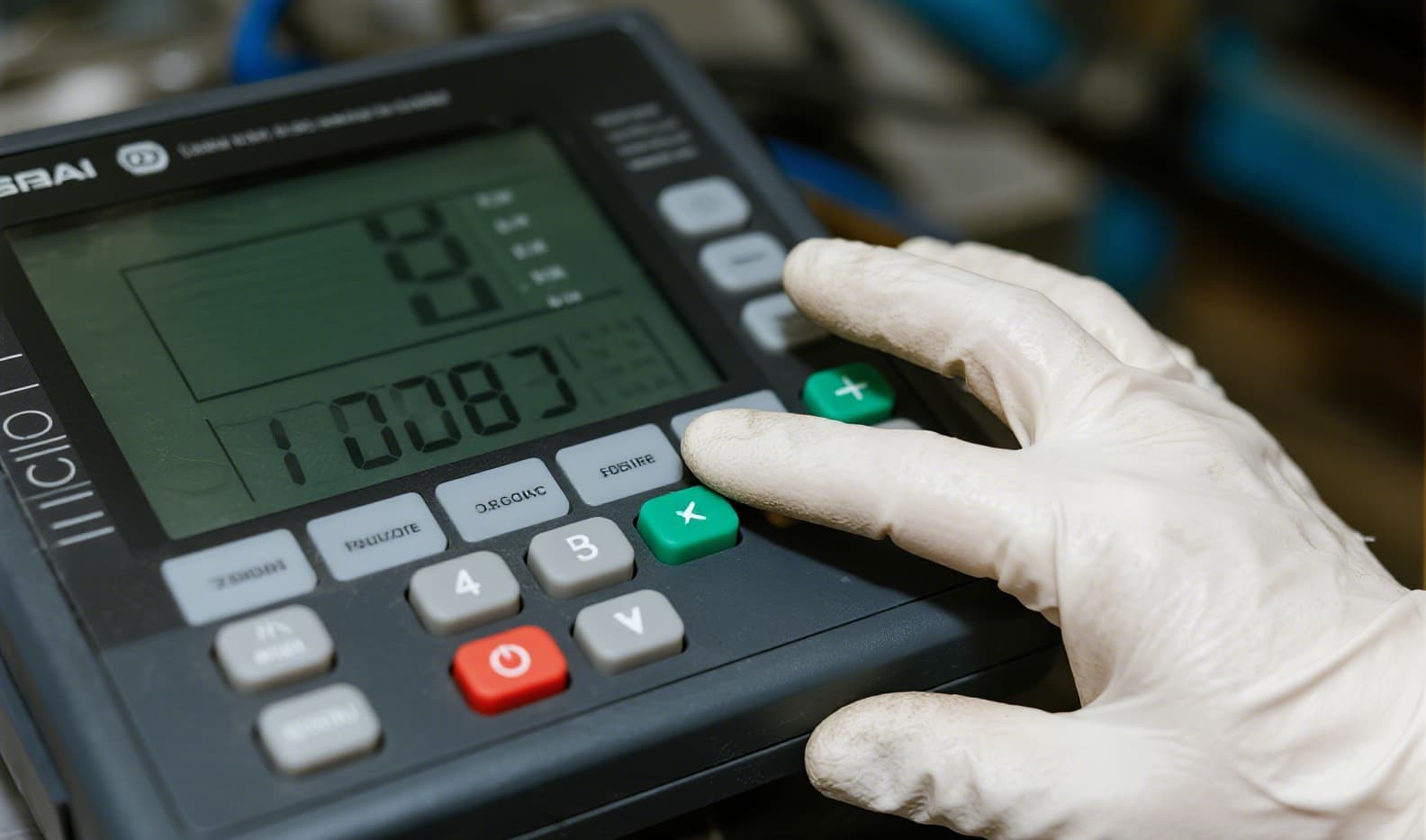

FromRubber is a specialist manufacturer of custom silicone keypads designed for process instrumentation, analytical equipment, and industrial controls. We understand that your instrument's reliability depends as much on the user interface as on the sensing element. That is why we engineer every keypad to withstand the specific environmental challenges of your application — whether it is high‑sulphur flue gas, chlorine‑rich atmospheres, coastal marine environments, or aggressive chemical washdowns.

Our design process begins with a detailed analysis of your operating conditions: temperature range, humidity, chemical exposure, vibration spectrum, and required tactile feel. We then select the appropriate silicone compound — from general‑purpose to fluorosilicone for extreme chemical resistance — and design the conductive pill formulation for optimal contact resistance and cycle life.

Design flexibility that fits your instrument

Unlike off‑the‑shelf keypads that force compromises, FromRubber offers complete design freedom. We can match any key layout, key spacing, and key travel requirement. We offer backlighting options — including LED, fiber‑optic, and electroluminescent — for low‑light environments. We can integrate EMI shielding layers, ESD protection, and membrane circuits to reduce wiring and improve assembly efficiency.

We also understand that your instrument may have an existing mechanical design. Our engineering team can reverse‑engineer the keypad interface and produce a drop‑in replacement that requires no changes to your front panel or PCB layout. We provide full 3D models, material certificates, and production samples for validation before volume production.

---

Breaking the cycle — for good

The industry has long accepted keypad failure as an unavoidable operational cost. But with today's silicone keypad technology, that acceptance is no longer justified. Instruments that previously required biannual keypad replacements can now operate for a decade or more with the same interface. This translates to lower maintenance budgets, reduced spare parts inventory, and — most importantly — reliable operation of critical safety and control functions.

FromRubber has helped hundreds of industrial facilities transition from metal‑dome to silicone‑based interfaces. Our customers include power generation, oil and gas, chemical processing, water treatment, and pharmaceutical manufacturers. We provide a complete service — from material consultation through prototyping to volume production — with typical prototype lead times of 7 to 10 working days.

If your instruments are plagued by unreliable keypads, contact us. We will show you how a silicone keypad can end the cycle of repeated failures and deliver the reliability that your process demands.
