A DIN rail plastic enclosure is chosen on three numbers that rarely appear on a datasheet: the module width in 17.5 mm steps, the heat the electronics put inside it, and the tooling cost of the cut-outs. This note covers panel-build economics, derating, and the customisation decisions that decide whether a standard box or a new mould is the cheaper answer.
Panel-build note
A DIN rail plastic enclosure is a mechanical interface before it is a box. Its width sets how many modules fit a duct run, its internal volume sets how much heat the electronics can shed, and its cut-outs decide whether you buy a standard part or a tool. Getting those three right at the concept stage is worth more than any price negotiation later.
- Width is quantised: modules step in 17.5 mm increments, so a design that misses a step wastes a slot in every panel.
- A closed plastic box derates electronics: internal temperature rise of 20 to 30 K is normal, and it decides the rating you can claim.
- Standard cut-outs are cheap; a new opening pattern is a tool. Compare the tool against the labour of hand-cutting.
Module width and the arithmetic of a panel build
DIN rail components are designed around a 17.5 millimetre module, and most enclosures are offered in multiples of it. That is not a stylistic choice: a duct run has a fixed length, and every enclosure that overshoots its nominal width by two millimetres steals space from the next device. When a panel builder compares two suppliers, the width tolerance matters as much as the width itself.
The second dimension is depth. A shallow enclosure forces wiring into the cover; a deep one intrudes into the wiring duct zone. Ask for the internal depth after the terminal blocks are fitted, not the external depth on the drawing — that is the number the installer works with.
Thermal derating inside a closed DIN rail plastic enclosure
Plastic is a poor conductor, so a closed enclosure behaves like a small oven. The internal air temperature is typically 15 to 30 kelvin above ambient depending on the surface area, the mounting and the power dissipated. That rise has to be subtracted from the rating of every component inside before the assembly is claimed for a temperature class.
The design levers are surface area, ventilation and thermal coupling. A wider enclosure with a ribbed side wall sheds more heat than a narrow smooth one of the same volume. A vented cover helps, but it also changes the IP rating and lets dust in, which is unacceptable in most panels. The honest solution is usually to calculate the rise, then choose the next size up rather than to add a fan to a sealed box.
- Surface area — ribbed walls and a wider footprint both lower the rise.
- Mounting — a rail-mounted box in free air runs cooler than one packed against a duct.
- Internal layout — keep the hottest component near a wall, not in the centre.
Standard housing versus a custom mould
| Decision | Standard enclosure | Custom mould |
|---|---|---|
| Tooling cost | None or a small machining charge | A cavity tool plus a first-article report |
| Cut-outs | Drill or punch by hand, or a standard pattern | Moulded in one shot, repeatable |
| Wall thickness and ribs | Fixed by the supplier | Tuned for stiffness and heat |
| Branding | Label or pad print | Moulded-in logo, no added operation |
| Lead time to first parts | Days from stock | Four to eight weeks including tool |
| Break-even | Low volume, many variants | Volume above roughly a few thousand units |

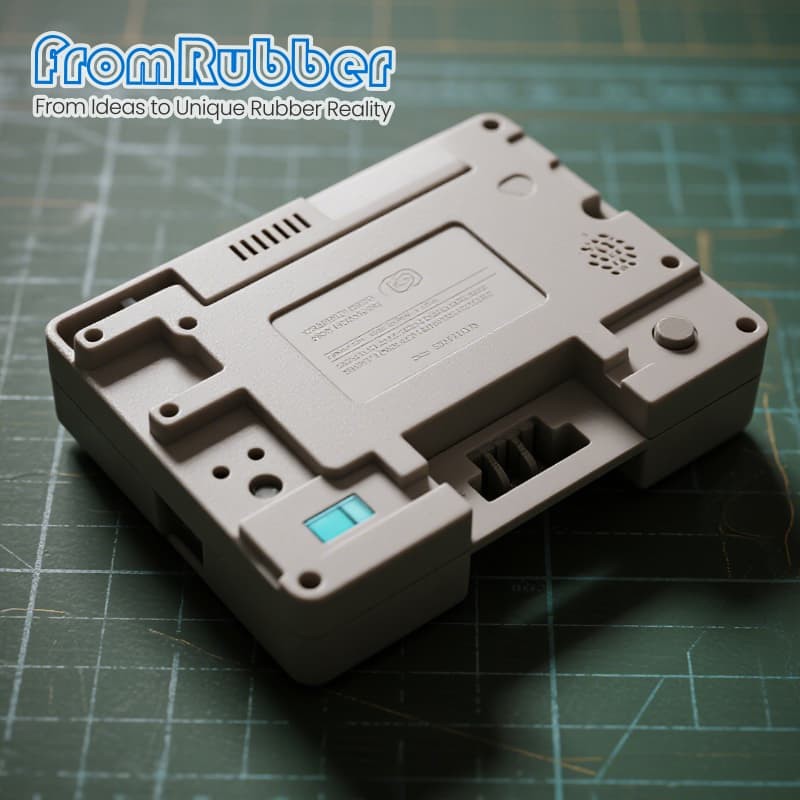

Cut-outs, seals and the details that decide assembly time
Every opening in a sealed enclosure is a leak path and a hand operation. A moulded opening with a defined gasket land takes seconds to assemble; a hand-cut opening needs deburring, a gasket cut to fit and an inspection step. Multiply that by the number of connectors on the box and the labour difference exceeds the tool cost well before the thousandth unit.
Sealing is the other quiet cost. A screw-locked lid with a moulded gasket groove seals predictably; a flat lid on a flat flange relies on the gasket staying in place during assembly, which it often does not. Specify the groove, the gasket durometer and the screw torque, then test a production sample at the target IP rating rather than a prototype.
How a custom enclosure programme is quoted and run
Send the panel layout, not only the box outline — the layout usually changes the recommendation.
Inputs
Module width required, internal volume, connector list, IP target, ambient temperature and the rail standard in use.
DFM and tooling
Draft, wall sections, boss placement and gasket groove reviewed before the cavity is cut, with a mould-flow check on thin walls.
Sampling
First-article inspection, IP test on production samples and a fit check on a real DIN rail with the actual terminals.
Volume and variants
Cavity count, colour options, laser marking versus moulded legends, and packaging that protects the gasket lands.
What an inspector checks on a DIN rail enclosure
Panel inspection tends to focus on four things that a drawing rarely states: whether the enclosure sits square on the rail, whether the lid closes without trapping a wire, whether the earth continuity path is defined, and whether the marking is legible after installation. Each of them is a design decision, and each is cheap to fix before the tool is cut.
Marking deserves its own line in the specification. A laser-marked label on a textured surface fades; a moulded legend in the same colour as the body disappears at arm's length. Specify contrast, character height and the position relative to the terminal block, then check a marked sample under the lighting of a real panel room rather than on a bench.
Questions from panel builders and OEMs
Can a DIN rail enclosure be mounted horizontally?
Mechanically yes, thermally it changes the convection path. A horizontal mount usually runs hotter; check the rise before derating components.
What IP rating is realistic for a plastic DIN enclosure?
IP54 to IP65 is typical with a gasket and a screw-locked lid. Beyond that, cable entries and lid geometry dominate, and the enclosure alone cannot deliver the rating.
Is flame-retardant plastic necessary?
It depends on the panel standard and the environment. Flame-retardant grades cost more and are often slightly weaker; specify them where the standard or the insurer requires it, not by default.
How many variants before a custom mould pays?
Roughly when the annual volume passes a few thousand units, or earlier if the cut-out labour per box is significant. The calculation is labour and yield against tool cost, not price per part alone.
