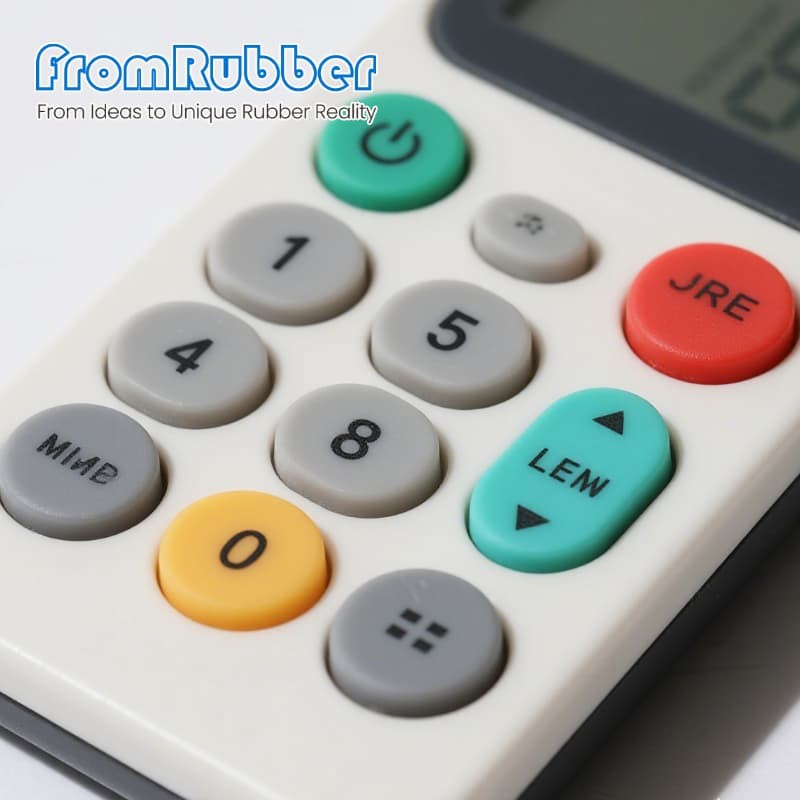

How durable is the printing on silicone keypads, and what abrasion test standards apply?

How durable is the printing on silicone keypads, and what abrasion test standards apply?

How durable is the printing on silicone keypads, and what abrasion test standards apply?

Print Durability & Abrasion Resistance of Silicone Keypads

Complete Guide to Legends, Standards, and Testing

Key Insight

The durability of printing on silicone keypads is not a single specification but a system comprising ink chemistry, surface treatment, printing technique, and protective coatings. At FromRubber, we engineer this system to withstand 500,000 to 1,000,000+ rub cycles depending on the selected standard, ensuring legends remain legible throughout the product's operational life even under harsh conditions.

The Science Behind Durable Printing

Unlike printing on paper or plastic, silicone presents a unique, low-surface-energy substrate that resists adhesion. Achieving durable legends requires a specialized technical process that FromRubber has mastered over decades.

Durability is measured not just by abrasion resistance but also by chemical resistance (to cleaners, solvents, sweat), UV stability, and temperature tolerance. Failure typically manifests as fading, cracking, peeling, or complete removal of the printed graphic.

Critical Success Factors:

  • Surface Energy Modification: Plasma or flame treatment to increase adhesion.
  • Ink Formulation: Two-part silicone-based or UV-curable inks designed for covalent bonding.
  • Curing Process: Precise temperature and time control for complete cross-linking.
  • Protective Topcoat: A clear silicone layer to shield the print from direct wear.
FromRubber Laboratory Technician Performing Print Abrasion Test

Validation is Key

Every print formula at FromRubber undergoes rigorous standardized abrasion and chemical testing before approval for production.

Printing Methods & Their Durability Profile

Printing Method Typical Abrasion Resistance (Rub Cycles) Best For FromRubber Recommendation
Screen Printing (Standard) 100,000 - 300,000 cycles Indoor consumer devices, low-frequency use Cost-effective for simple legends. We enhance with proprietary ink additives.
Screen Printing (Enhanced/Two-Part Ink) 500,000 - 1,000,000+ cycles Medical, industrial, automotive controls FromRubber's default for high-wear applications. Provides chemical and UV resistance.
Laser Etching / Ablation Virtually unlimited (subsurface marking) Military, extreme environment, lifetime products Highest durability. Process alters silicone color, no ink adhesion concerns.
Digital Pad Printing (UV-Cured) 200,000 - 500,000 cycles Multi-color graphics, complex images, prototypes Excellent for design flexibility. We apply a protective overmold or coating for durability.

Note: Cycle counts based on ASTM D4060 Taber Abrasion test with CS-10 wheel, 500g load. Actual field performance depends on use conditions.

International Abrasion & Wear Test Standards

Mechanical Abrasion Tests

  • ASTM D4060 (Taber Abraser): Most common. Rotating abrasive wheels wear the surface. Results in cycles to failure or weight loss.
  • ISO 5470-1 (Rubber Wheel): Similar principle, widely used in automotive specifications.
  • MIL-STD-810G Method 515.6: Sand and dust abrasion for military equipment.
  • FromRubber Internal STD-FR102: Enhanced test simulating fingernail scratching and repeated keypress wear.

Chemical & Environmental Tests

  • ISO 4611 / ASTM D2240: Exposure to cleaning agents, solvents, and sweat.
  • ASTM G154 (QUV): Accelerated UV weathering to test colorfastness and ink degradation.
  • IEC 60068-2-70: Combined rubbing with solvent (e.g., isopropyl alcohol) to simulate cleaning.
  • FromRubber Internal STD-FR105: Real-world simulation with common hospital disinfectants and industrial cleaners.
✓ All FromRubber keypads come with a standard test report for specified standards
FromRubber Chemical Resistance Comparison Chart for Printed Legends

Beyond Abrasion: Chemical Attack

Many field failures occur from chemical interaction, not mechanical wear. FromRubber tests against a library of 50+ common chemicals.

Critical FAQs on Print Durability

Q1 Can you match specific corporate colors and guarantee their fade resistance?

Yes. FromRubber uses spectrophotometer-controlled color matching with UV-stable pigments. We subject color matches to ASTM G154 QUV testing (typically 500-1000 hours) to guarantee less than ΔE 2.0 color shift, which is virtually imperceptible to the human eye. We provide test plaques for client approval.

Q2 What about wear on transparent windows for LED backlighting?

This is a critical interface. Abrasion can cloud the window, reducing light transmission. FromRubber employs either:

  1. Co-molded clear silicone: A separate, durable clear silicone piece molded into the keypad, offering the best clarity and wear resistance.
  2. Printed transparent ink with protective hard coat: A specialized clear ink overprinted with a UV-cured protective layer, tested for >300,000 rub cycles with less than 10% haze increase.

Q3 How do we specify the right durability level for our product?

Provide FromRubber with your product's use-case profile:

Environment: Indoor/outdoor, chemicals present, temperature range
Cleaning Regime: Frequency and cleaners used (alcohol, bleach, etc.)
Expected Lifespan: Years of service or total actuations
We will recommend the appropriate printing system and validate it with pre-production testing.

Ensure Your Legends Last as Long as Your Product

Don't compromise on keypad legibility. Partner with FromRubber for engineered printing solutions backed by data, not just promises.

500K+
Standard Abrasion Cycles
50+
Chemicals Tested
0.5
Micron Print Precision
