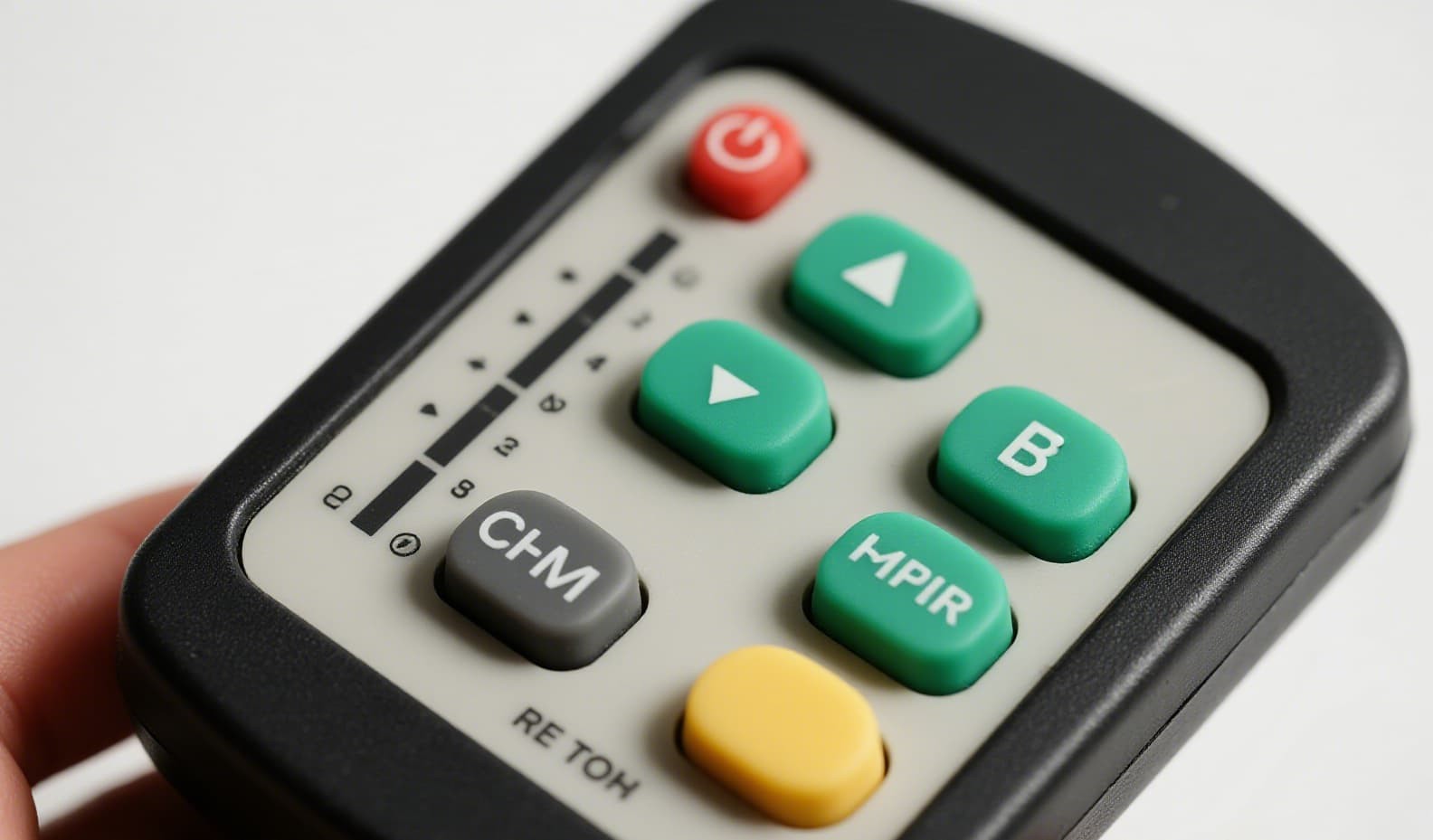

What are the most common instrument silicone keypad defects？
- Share
- Issue Time
- Aug 14,2026

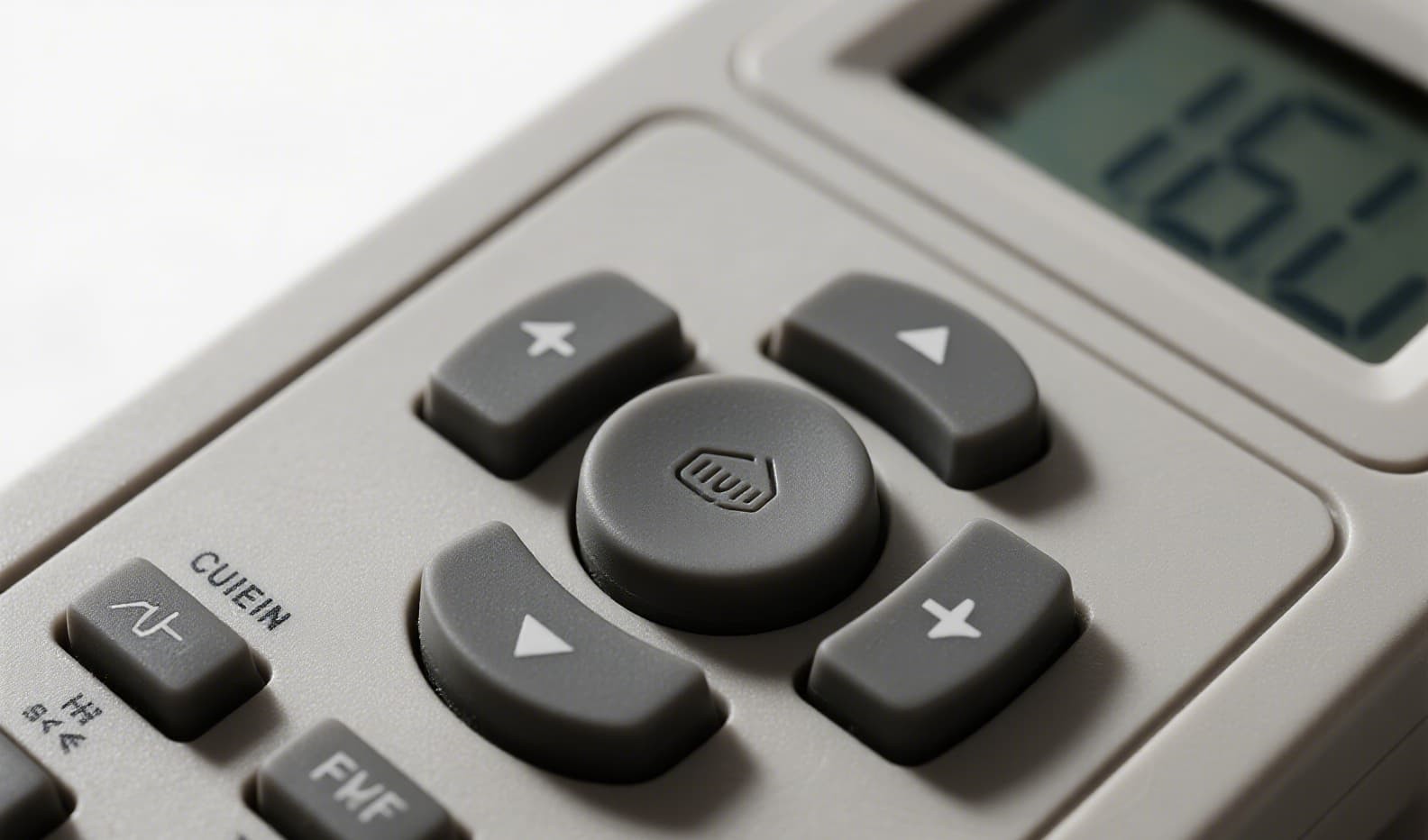

🔍 Silicone keypads are the primary user interface for many instruments, yet they are also a common source of failure. Understanding the most frequent defects – from legend wear to contact resistance drift – is the first step toward preventing them. This guide catalogues the defects most often seen in instrumentation applications, their root causes, and how to detect them early.
Contact Resistance Drift
- Symptoms: Intermittent or high resistance (>500Ω), signal noise, false readings
- Root causes: Carbon filler degradation, interface oxidation, contamination
- Detection: 4‑wire Kelvin measurement; drift >50Ω over life indicates failure
Legend Delamination & Fading
- Symptoms: Inks peeling, cracking, or colour loss after IPA cleaning
- Root causes: Poor ink adhesion, no surface treatment, solvent‑based inks
- Detection: 20,000‑cycle IPA wipe test; ΔE colour change >3.0
Actuation Force Degradation
- Symptoms: Buttons feel mushy, stiff, or inconsistent across keys
- Root causes: Elastomer relaxation, web thickness variation, incomplete curing
- Detection: Force‑stroke curve monitoring; drift >10% from baseline
Cracking & Mechanical Fracture
- Symptoms: Visible cracks on domes, pillars, or webbing; sudden key failure
- Root causes: Poor tooling design (sharp corners), low‑Tg silicone, thermal shock
- Detection: Visual inspection; thermal cycling at –40°C to +85°C
Surface Defects (Sink Marks, Flash)
- Symptoms: Visible depressions, excess material, or uneven texture
- Root causes: Mould pressure variation, gate design issues, cycle time
- Detection: Visual inspection; profilometer measurement
Contamination & Silicone Oil Migration
- Symptoms: Sticky surface, residue on PCB, high contact resistance
- Root causes: Excessive release agent, low‑molecular‑weight silicone bleed
- Detection: FTIR surface analysis; contact angle measurement
Defect Quick Reference
| Defect | Severity | Detection Method | Prevention |
|---|---|---|---|
| Contact Resistance Drift | Critical | 4‑wire Kelvin, 1M cycle test | Stable compound, gold pads, SPC |
| Legend Delamination | Major | 20k IPA wipe, colourimetry | Plasma treat, epoxy ink, UV coat |
| Actuation Force Degradation | Major | Force‑stroke curve monitoring | Tight tolerance, process control |
| Cracking / Fracture | Critical | Thermal cycling, visual | Rounded corners, low‑Tg material |
| Surface Defects | Minor | Visual, profilometer | Optimised moulding parameters |
| Contamination / Oil Bleed | Major | FTIR, contact angle | No release agent, post‑curing |
Root Causes – Why Do These Defects Occur?
Material Quality
Low‑grade silicone, recycled material, or poor filler dispersion leads to resistance drift and cracking.
Tooling Precision
±0.15mm tolerances create stress concentrations; ±0.05mm tolerances eliminate them.
Process Control
Inconsistent curing temperature or pressure causes incomplete crosslinking and force drift.
Contamination
Release agents, mould oils, and dust create surface defects and contact issues.
Design
Sharp corners, thin webs, and non‑uniform wall thickness accelerate cracking.
Testing Gaps
Failure to perform thermal cycling, wipe tests, or 1M‑cycle validation leaves defects undetected.
How to Prevent These Defects
- Specify premium material – require CoA, FTIR, and mechanical test data for each batch.
- Demand ±0.05mm tolerance – for web thickness, pillar height, and dome radius.
- Validate with lifecycle tests – 1M+ cycles, 20k IPA wipes, thermal cycling.
- Use plasma treatment – for ink adhesion before legend printing.
- Implement SPC – monitor moulding process capability (Cpk ≥ 1.67).
- Perform First Article Inspection – full dimensional and functional report before production.
At FromRubber, we systematically prevent these defects through material control, precision tooling, and rigorous validation. We provide full defect‑prevention documentation – including FAI reports, lifecycle test data, and material certificates – so you can be confident that your keypad will not fail in the field.
Summary – Know the Defects, Prevent the Failures
The most common instrument silicone keypad defects – contact resistance drift, legend delamination, force degradation, cracking, surface defects, and contamination – are all preventable with the right material selection, tooling precision, process control, and validation protocols. Recognising these defects early, understanding their root causes, and specifying prevention measures in your sourcing documentation will protect your instrument's reliability and reputation.
✓ FromRubber delivers defect‑free silicone keypads through full‑chain manufacturing – from material compounding to final validation. We provide defect‑prevention documentation with every order.
