Custom iPhone 17 Silicone Case Manufacturing Guide by FromRubber

Mobile accessories / new-model tooling - reviewed 11 November 2026

A new phone generation is the busiest four weeks in a case programme, and the work is not design. It is measurement. Camera plateaus move, button positions shift by a millimetre, and a case cut from last generation's file will fit the new phone badly in exactly the place a buyer checks first: the camera cut-out and the side buttons.

This guide is about how a custom silicone phone case programme is actually run against a new model, including what can start before the device is in hand and what has to wait for a physical unit.

Definitions. A custom silicone phone case is a moulded shell built to a specific device, so the camera opening, button reliefs and port cut-outs are all device-specific. A camera plateau is the raised island around the lens assembly, and its outline changes more often than the body outline. Relief depth is the distance a moulded button pad stands above the case wall; too little and the button is unreachable, too much and it presses itself.

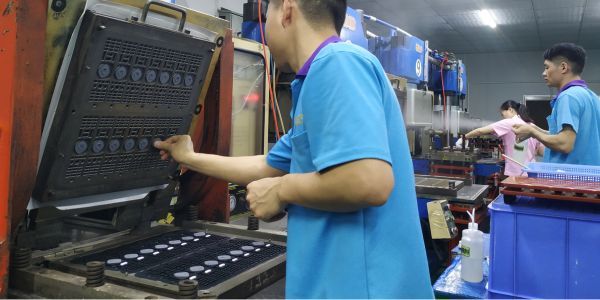

Worker loading a steel mould into a compression press, with a moulded silicone keypad sheet on the lower platen and a colleague working behind
Cavities are cut from measured geometry, not from a rendering. A millimetre at the camera plateau is a rejected first article.

What can start before the phone arrives

Tooling steel and cavity layout

The plate size, the cavity layout and the ejection approach depend on the case footprint, which is usually predictable from the display size and the body class. A supplier can prepare those and cut the generic wall geometry before the device file exists, which is how a first article lands inside the launch window rather than after it.

Colour and material

Compound, hardness and colour masterbatch can be settled early, because they do not depend on the device. Doing that first means the trial parts are in the production material, which is the difference between a real first article and a fit check.

The four features that decide whether the case fits

FeatureWhy it failsHow to get it right
Camera cut-outCopied from the previous generation, or drawn from a renderMeasure the physical device, including the lens bezel height
Button reliefsRelief too shallow to reach, or so deep the pad pressesMeasure button protrusion; set relief depth against it, not against the wall
Port openingsSized to the socket rather than the plugDraw the connector envelope, then add clearance
Split linePlaced on a visible edge, or interfering with a buttonFollow the device seam and keep the land away from controls

Sampling against a moving target

Pre-production devices often differ from retail units in small ways, and a case cut to a pre-production sample can be a fraction out on the camera plateau. The practical control is to hold the tool until a retail unit is measured, and to keep the first article conditional on that measurement. Brands that skip this step usually discover the problem in the first customer review rather than in the sample room.

Colour and transparency interact with the camera

A case that covers the flash or reflects into the lens produces photographs with a haze the user blames on the phone. The camera opening should be generous enough to clear the flash path, and a clear case should be checked for internal reflection before the colour range is confirmed.

What the first article should prove

Fit on the actual device, button actuation without removing the case, camera clearance with the flash fired, and port access with a standard cable. Those four checks take an hour and prevent the most common returns. Force and drop data matter too, but they are secondary to the case simply fitting the phone it was sold for.

Commissioning a custom silicone phone case

Send the device model, a physical unit or a measured 3D file, and the colour plan. The custom multi-colour silicone case range shows the format, and the multi-colour phone case page shows a comparable build.

Can a case be tooled before the phone is released?

Partly. Plate size, cavity layout and material can start from a known body class, but the camera and button geometry should be measured on a physical unit before the cavities are cut.

Why does a case press the side buttons by itself?

Relief depth is too great or the pad wall is too thin, so the case applies load without a finger. Relief should be set against the measured button protrusion.

Does a clear case affect photos?

It can, if the camera opening is tight or the material reflects light into the lens. Test with the flash before approving the colour.

Device dimensions change between generations and between pre-production and retail units. Any case programme should be validated on a physical device before production tooling is approved.
