Automotive silicone parts are chosen for what a vehicle does to them: fuel vapour, under-bonnet heat, sun load and compression set. Which parts need fluorosilicone, which need a low-volatile compound, and how to validate each one.
Automotive components / material selection - reviewed 11 November 2026
Automotive silicone parts are chosen for the environments a car creates rather than for the ones a showroom shows. Under-bonnet air, fuel vapour, brake dust, sun through glass and a winter at minus twenty all act on the same part, and each one rules out a different compound. The specification work is deciding which of those the part actually sees, then validating against that list instead of against a datasheet headline.

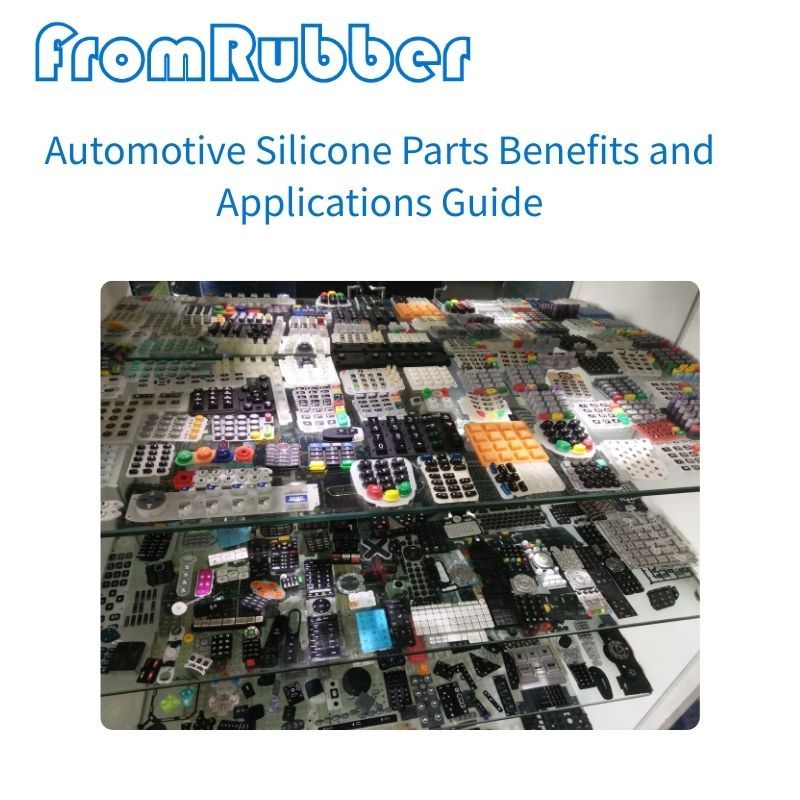

A modern vehicle uses silicone in places most buyers never see: connector seals, boot seals, damping pads, cable grommets, trim bumpers, keypad membranes and hose linings. They share a material family and almost nothing else.
Definitions. Automotive silicone parts are moulded or extruded silicone components specified against a vehicle environment rather than a consumer one, usually with a defined temperature range, fluid exposure and service life. Compression set is the permanent deformation left after a gasket has been squeezed hot for a long time, and it is the property that ends most sealing lives. Fogging is the condensation of volatile material onto glass or lenses, and it is a specification limit in interior parts.
What each part actually has to survive
| Part | Dominant stress | Material consequence |
|---|---|---|
| Connector and boot seals | Heat, ozone, flexing | Low compression set, good tear strength |
| Under-bonnet gaskets | Oil and fuel vapour, 120 degrees and above | Fluorosilicone where hydrocarbons are present |
| Interior trim bumpers | Sun, hand oils, fogging limits | Low-volatile compound, post-cured |
| Cable grommets | Sharp edges, vibration, water | High tear strength, controlled hardness |
| Keypad membranes | Repeated press, cleaning, temperature cycling | Stable snap, legend that will not wear |
Fluorosilicone is not a premium upgrade, it is a different job
Standard silicone swells in hydrocarbon fuel and oil. Fluorosilicone resists them, at roughly several times the material cost and with weaker tear strength and worse low-temperature flexibility. Specifying it where it is not needed pays for properties the part will never use; leaving it out where fuel vapour is present produces a seal that grows and then leaks, usually after the warranty period has been calculated.
Compression set decides the service interval
A gasket that seals at installation and takes a permanent set after a thousand hot cycles will leak at the flange, not at the material. Compression set is measured on a defined specimen at a defined temperature and time, and it is the number to put in the specification when the joint will be tightened once and never touched again.
Validation that matches the environment
Three tests carry most of the risk in automotive silicone. Heat ageing establishes what happens to hardness and elongation after time at temperature. Fluid immersion establishes swell and hardness change in the actual fluids, at the actual concentration. Compression set establishes whether the joint will still seal after the service life. A part that passes all three at the design stage usually passes the vehicle test; a part that skips one of them usually fails at the worst possible moment.
Fogging deserves a mention because it is invisible in a lab sample and obvious on a windscreen. Interior parts should be post-cured and specified with a volatile limit, otherwise the first hot week in a closed car deposits a film on the glass that no one can clean off easily.
Design details that decide whether the mould works
Silicone seals are often thin and flexible, which makes them hard to hold dimensionally. A section that is too thin will not fill; a section that varies sharply will shrink unevenly and pull the seal out of flat. Uniform sections, generous radii and a moulded-in location feature do more for the fit than a tighter tolerance on the drawing.
What the drawing must carry
Hardness with tolerance, the fluid list, the temperature range, the compression target, and the two or three dimensions that actually seal. Everything else can sit in a general tolerance class. A drawing with twenty tight tolerances tells a mould shop that nothing was prioritised, and the price reflects the ambiguity.
Commissioning automotive silicone parts
Send the drawing with the fluid and temperature list, and the material route becomes a decision rather than a guess. The custom silicone rubber parts range covers the formats, and the production process overview sets out how a tool moves from drawing to shipment.
When is fluorosilicone necessary?
When the part contacts hydrocarbon fuel, oil or non-polar solvent, or when vapour concentration is high. For water, weather and heat alone, standard silicone is usually sufficient and better value.
Why does a silicone gasket leak after a year?
Usually compression set rather than chemical attack. The material loses its recovery, the joint loses its load, and the leak appears at the flange rather than at the material.
Can interior parts cause windscreen fogging?
Yes, if they release volatiles in heat. Post-curing and a volatile limit in the specification are the controls, and they should be requested rather than assumed.
Material recommendations here depend on fluid, temperature and compression, and should be confirmed by testing the specific compound against the actual service environment.
