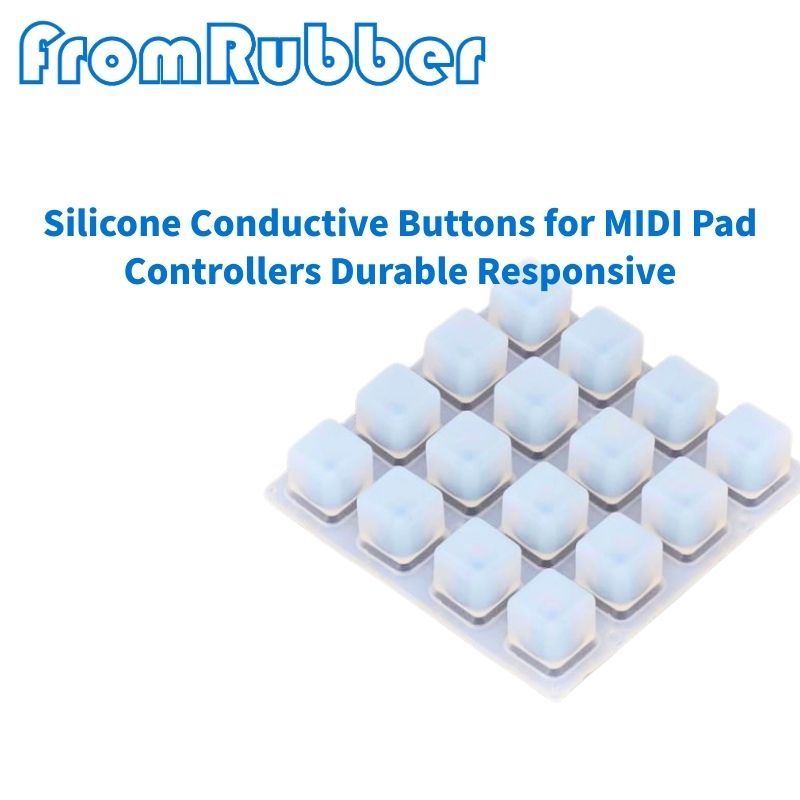

Silicone Conductive Buttons for MIDI Pad Controllers Durable Responsive
- Share
- Issue Time
- Sep 19,2025
Summary
Silicone conductive buttons are judged on three numbers: travel to contact, force at the snap, and contact resistance at end of life. How carbon pills, conductive ink and metal domes compare on a pad controller.
Music hardware / conductive elastomer - reviewed 11 November 2026
A pad controller is judged in the first ten seconds of playing, and the judgement is about timing rather than sound. Silicone conductive buttons feel immediate because the snap and the contact happen close together, and they fail quietly because the contact resistance drifts before the button ever stops working. The design work sits in three numbers: travel to contact, force at the snap, and resistance at end of life.
Drum pads and clip-launch grids are pressed thousands of times in a session, often with two hands and no visual reference. That combination rewards a button that returns fast and confirms the hit mechanically, which is exactly the niche a moulded conductive pad occupies.
Definitions. Silicone conductive buttons are moulded silicone keys whose underside closes a circuit on a printed circuit board, either through a carbon pill or through a printed conductive layer. Contact resistance is the measured resistance between the button and the PCB pad when pressed, and it is the number that decides whether the controller still registers a hit. Snap is the collapse of the moulded web, which is what the finger reads as timing.
Reference values used in this article
- Carbon-pill contacts are typically specified to hold contact resistance in the tens of ohms across the rated cycle life.
- Pad sizes in controllers commonly run from about 8 mm to 30 mm, with 4 by 4 grids the most common layout.
- Conductive ink is a wear layer: its resistance rises with cycles, so end-of-life values must be tested, not assumed.
- Moulded silicone tolerates the temperature and humidity swings of a touring case without becoming brittle.
What a pad controller asks of silicone conductive buttons
Travel to contact should be short and predictable
The perceived latency of a pad is dominated by how far the finger moves before the circuit closes, not by the electronics. A short travel with a defined snap reads as fast; a long, soft travel reads as mushy even when the sample rate is identical. The web geometry sets both, and it should be validated with a force-travel curve on the trial cavity rather than by playing the sample.
The PCB pad is half the contact
A carbon pill closing onto a contaminated or thinly plated pad will read high resistance no matter how good the rubber is. Gold-plated pads, a defined contact area and a solder mask that does not encroach on the pad are the other half of the design. Dust is the enemy in both directions: it insulates between pill and pad, and it abrades the pad surface over time.
Carbon pill, conductive ink or metal dome
| Contact type | Strength | Limit |
|---|---|---|
| Carbon pill | Stable resistance, long life, robust against over-press | Needs a defined PCB pad and a flatter key geometry |
| Conductive ink | Low cost, suits short travel and dense layouts | Wear layer: resistance rises with cycles |
| Metal dome | Crispest snap and the longest life | Extra component, taller stack, different feel |
Velocity sensitivity is a firmware question with a mechanical floor
Controllers that respond to how hard a pad is hit rely on the time between two contact points or on a pressure-sensitive layer. A moulded pad can support that with a two-stage contact, but only if the force-travel curve is repeatable across every key in the grid. A sheet where one corner needs 20 percent more force than another will produce uneven velocity response that no calibration fixes.
Quiet operation is a web decision
Studios and stages both value a pad that does not click. A short-travel web with a damped return is quieter than a snap dome, which is why silicone remains the default in clip-launch grids even where a mechanical switch would last longer.
Making the sheet hold its tolerance
A pad sheet is a large, thin moulding, and thin mouldings move. The two variables that matter are the web thickness across the sheet and the flatness of the base when it is clamped to the PCB. Uniform web thickness keeps the force consistent; a base that bows lifts the centre keys off their pads, which reads as missed hits in the middle of the grid. Ribs in the base, a defined clamp line and a flatness callout on the drawing are the usual controls.
Commissioning a conductive pad
The brief needs the grid layout, the PCB pad geometry, the force target, the cycle count and the housing that will clamp it. The silicone keypad manufacturing section covers the tooling route, and the custom silicone rubber keypad page shows the standard construction with conductive contacts.
Why do some pads stop registering after a year?
Contact resistance has risen past the circuit's threshold. That is usually ink wear or a contaminated PCB pad rather than a failure of the silicone itself.
Can a silicone pad sheet be user-replaceable?
Yes, if the housing is designed for it. A pad held by a bezel and located by two pins can be replaced in minutes; a bonded sheet cannot.
Does the pad material affect latency?
Only through travel and return time. The scan rate of the electronics dominates, but a long travel before contact adds a delay the player can feel.
Resistance and cycle life depend on the contact type, the PCB finish and the housing clamp. Values should be established on the assembled unit rather than on a loose sheet.
For a controller pad programme, send the grid layout and the PCB pad drawing through the quotation file checklist.
