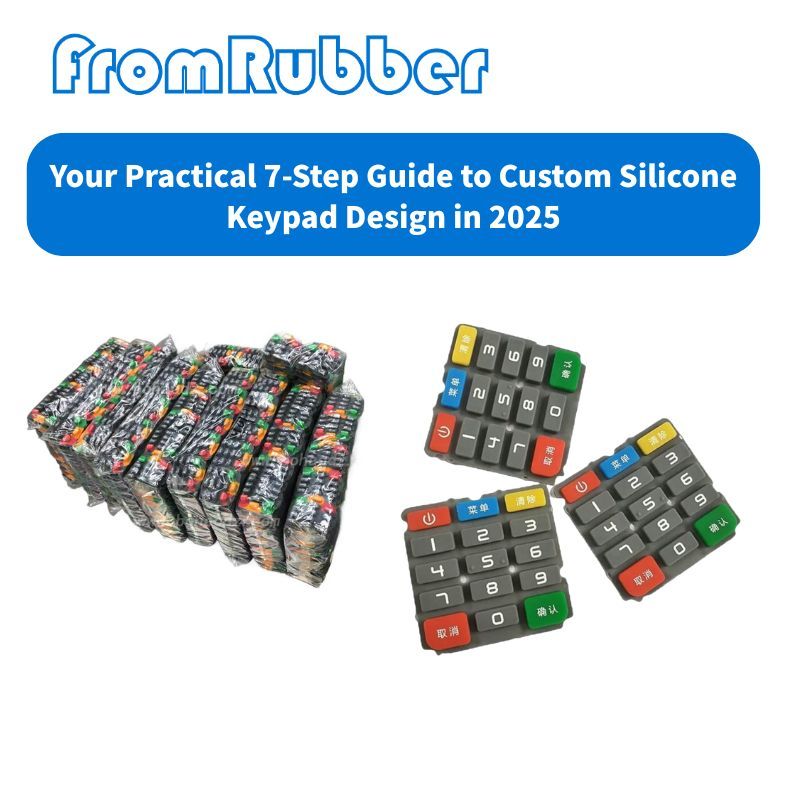

Your Practical 7-Step Guide to Custom Silicone Keypad Design in 2025
- Share
- From
- https://guides.libraries.psu.edu/apaquickguide/intext
- publisher
- karl
- Issue Time
- Oct 21,2025
Summary
A custom silicone keypad design is decided by seven inputs, from durometer and web geometry to the conductive path and the legend system. The order to fix them in, and the numbers to hold on a trial cavity.
Keypad engineering / design sequence - reviewed 11 November 2026
Most custom silicone keypad problems are decided in the first week, before a cavity is cut: the durometer that has to carry the force, the web that sets the snap, the conductive path that has to survive the press count, and the legend that has to survive the cleaning routine. This guide walks the seven steps in the order a tool actually gets built, and shows which numbers to fix at each one.
The order is not cosmetic. A keypad designed as a layout first and a mechanism second will be re-cut, usually twice, because the web that looked right on the drawing produces a force nobody wants to press a thousand times a shift.
Definitions. A custom silicone keypad design is a moulded rubber input panel where the key body, the return web and the conductive contact are produced in one part. Snap ratio is the difference between the peak force at the point of collapse and the force needed to hold the key down afterwards; it is what the finger reads as a click. Actuation force is the peak force measured at the keytop, and it is set by the web geometry and the compound together.
The seven steps in a custom silicone keypad design
| Step | Decide | What it locks in |
|---|---|---|
| 1. Use case and environment | Actuations per shift, glove use, cleaning agents, temperature | Force target, compound family, legend system |
| 2. Compound and durometer | Grade and hardness, typically 40 to 70 Shore A | Feel, return speed, wear at the keytop |
| 3. Web geometry | Web thickness, cone or cylinder profile, travel | Snap ratio and actuation force |
| 4. Conductive path | Carbon pill, conductive ink, or metal dome | Contact resistance and cycle life |
| 5. Legend and backlight | Moulded, printed, laser etched, light guide | Legibility after cleaning and wear |
| 6. Sealing and mounting | Perimeter seal, adhesive backing, or mechanical clamp | Ingress rating and assembly time |
| 7. Prototype and first article | Trial cavity, force curve, dimensional report | Whether the design survives production |
Steps one to three: the part that sets the feel
Start from the hand, not the drawing
A keypad pressed twice a day can be stiff and deliberate; one pressed several thousand times a shift has to be light, or the operator's hand becomes the failure mode. Glove use adds force, cleaning chemistry constrains the coating, and a cold warehouse raises the force again because silicone stiffens as it cools. Those four facts, written down at the start, decide the force target and the compound before any geometry exists.
The web is the mechanism
Snap comes from the web collapsing, not from the keytop. A thinner web gives a softer press and a slower return; a steeper cone gives a sharper break and a louder click. The practical way to work is to fix the force target and the travel first, then let the tool designer choose the web profile, rather than drawing a web and measuring what it does after the tool is cut.
Step two in detail: durometer is a system choice
Hardness changes feel, but it also changes the force the web produces at the same geometry, the speed of return, and how the keytop wears. A 50 Shore A compound is the common starting point for a hand-held device; 60 to 70 Shore A suits a panel that must resist a gloved press and stay flat under a bezel. Going harder to fix a mushy key is usually the wrong lever: it stiffens the return without fixing the snap, and it makes the legend coating work harder.
Step four: the conductive path decides the service life
Three routes dominate. A carbon pill moulded into the underside of the key gives a robust contact and a defined resistance, and it is the usual choice for a panel with moderate key counts. Conductive ink printed on the underside costs less at low volume and suits short travel, but the ink is a wear layer and its resistance drifts as it abrades. A metal dome bonded under the keypad gives the crispest snap and the longest life, at the cost of an extra component and a taller stack.
Whichever route is chosen, the number that matters is contact resistance at end of life, not at first press. That figure should be tested on a press rig at the expected actuation count, because a keypad that reads well on a bench and drifts after a hundred thousand presses is a warranty problem rather than a design preference.
Steps five and six: legend, light and seal
Legends fail in the cleaning routine, not in the factory
Moulded-in legends never wear because the colour is part of the part, but they limit the design to two moulded colours. Printed legends carry fine detail and more colours, and their life depends on the ink system and the protective coat. For a device cleaned with alcohol wipes, the coating specification matters more than the print resolution.
The perimeter seal is a geometry decision
A keypad bonded to a housing with a pressure-sensitive adhesive is only as good as the surface it is bonded to and the width of the bond line. A mechanical clamp with a moulded sealing bead tolerates a rougher housing and can be serviced. Deciding which one at step six, rather than at assembly, prevents the common outcome where a well-designed keypad leaks through its own perimeter.
Step seven: prove it before the production tool
A trial cavity is the cheapest place to discover that the force curve is wrong. The first article should record force and travel at the keytop, contact resistance, legend adhesion after a cleaning cycle, and the dimensions that carry function. If the trial part meets those four, the production tool is a scale-up rather than a redesign. The silicone keypad manufacturing section covers the tooling route, and the custom silicone rubber keypad page shows the standard construction.
Snap ratio: the number behind the click
Snap ratio is the peak force divided by the force the key still needs after the web collapses. A ratio close to 1 means the key feels like a sponge: the finger cannot tell when the press happened. A ratio that is too high produces a sharp, loud break that becomes tiring over a shift. Between those extremes sits the band an operator reads as a clean click, and the band has to be agreed on a sample rather than argued on a drawing.
Two practical consequences follow. First, the ratio moves when the travel to contact moves, even at constant peak force, because the contact closes at a different point on the curve. Second, it moves with temperature, because the compound stiffens as it cools. That is why a snap target without a temperature and a mounting condition is not a specification.
Why the web, not the keytop, sets the ratio
The keytop transfers the load; the web decides how that load is released. A conical web collapses quickly once it passes its unstable point, which produces a crisp break. A cylindrical web holds load longer and releases more gradually, which reads as a softer press with a longer return. Neither is better in the abstract: a metering key wants the first, a volume rocker often wants the second.
What to measure and where
Measure at the centre of the keytop with a flat probe, at a stated speed, with the pad mounted in its bezel and the PCB in place. Then repeat at the coldest and hottest service temperatures if the product is force-sensitive. A report that quotes one number at room temperature on a loose pad is a starting point, not a qualification.
Certification and compliance affect the design, not just the paperwork
Most keypad projects inherit a compliance list from the end product, and that list quietly rules out design options. A flammability requirement may push the housing rather than the keypad, but it can also constrain the compound and the adhesive. A food-contact requirement removes some pigments. A medical requirement adds documentation that changes the sampling plan rather than the geometry.
| Requirement | What it changes in the keypad |
|---|---|
| Food contact | Compound and pigment family, plus the declaration per batch |
| Flame retardancy | Housing material mainly; adhesive and foam layers become the weak link |
| Medical device | Process validation, lot traceability and a stricter change-control rule |
| Automotive | Part-level traceability and a documented change notification |
| Cleanroom or wipe-down | Legend system, surface texture and the perimeter seal |
Seven defects a keypad programme actually fights
Most rejections at incoming inspection come from a short list, and each has a cause that can be designed out before the tool is cut.
| Defect | Usual cause | Design or process fix |
|---|---|---|
| Short fill at a corner | Preform weight or venting | Preform control, vent at the last point to fill |
| Flash on a sealing face | Parting line placement | Move the line away from the seal, or specify a deflash step |
| Torn web | Sharp root radius | Radius at the root, draft on the key wall |
| Legend wear | Ink system or coating | Moulded legend, or a specified hard coat |
| Erratic force across the pad | Web thickness variation | Even wall in the cavity, force measured at several keys |
| Rising contact resistance | Ink wear or PCB finish | Carbon pill, gold-plated pads, end-of-life test |
| Odour in a closed pack | Under-cure or no post-cure | Post-cure step and a batch smell check |
Where the money goes in a keypad project
Three lines dominate: the tool, the moulding cycle and the decoration. The tool is a one-off that becomes cheap over volume; the cycle is set by the thickest section; the decoration is priced per pass. A project that needs two printed colours and a protective coat carries three process steps after moulding, each with its own handling and inspection. That is why the same drawing can be quoted at two very different prices without either supplier being wrong, and why the decoration sequence belongs in the enquiry.
What durometer should a keypad be?
Between 40 and 70 Shore A covers most applications. Hand-held devices usually sit near 50, gloved industrial panels near 60 to 70. The web geometry and the force target decide the final value more than the feel preference does.
Carbon pill or conductive ink?
Pills for longer life and a defined resistance; ink for lower cost and short travel. Ink is a wear layer, so its end-of-life resistance is the number to test.
Why does a keypad feel different in winter?
Silicone stiffens as it cools, so the same web needs more force at low temperature. A design with a comfortable margin at room temperature can read as stiff in an unheated warehouse.
Force, travel and resistance values are design targets that must be confirmed on a trial cavity. They depend on compound, geometry and the mating PCB, and should be recorded in the first-article report.
