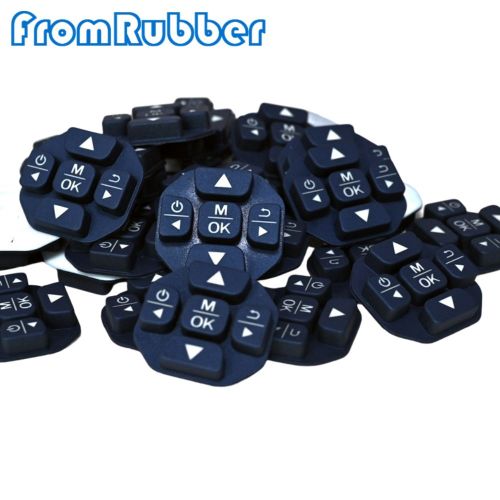

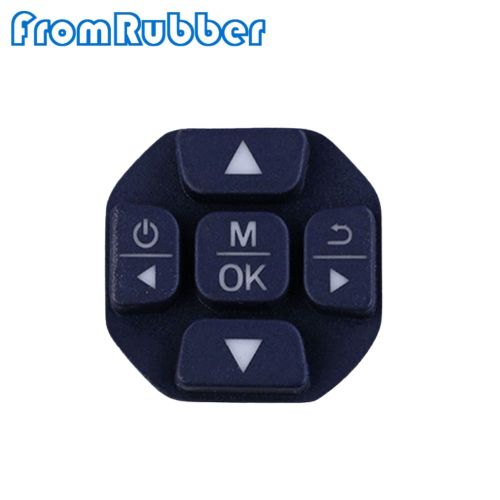

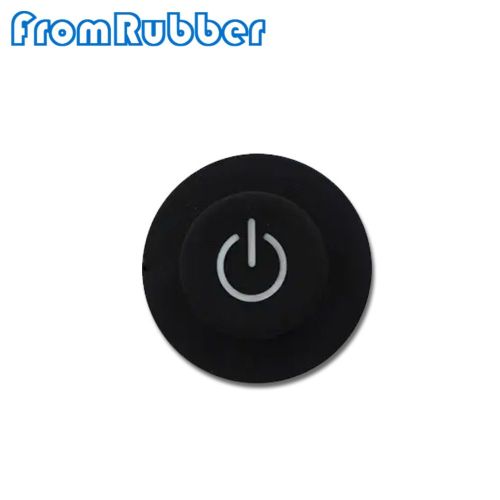

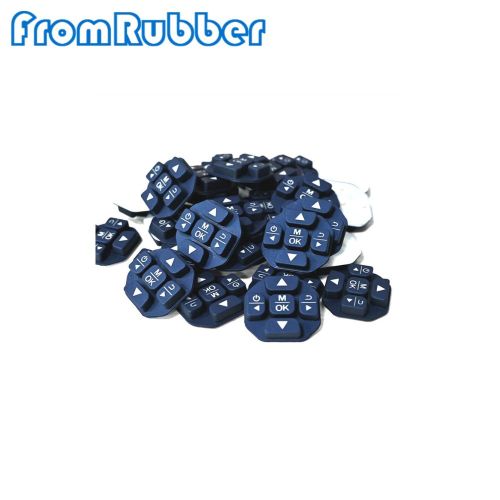

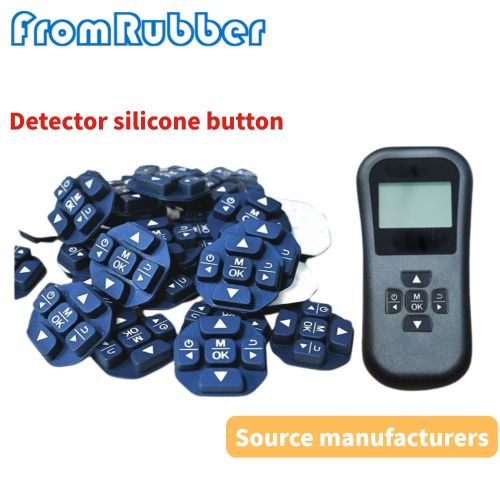

Detector Silicone Keypad Conductive Screen Printing Silicone Button
- Model
- Detector
Item specifics
- Produuct Name
- Detector
- Material
- Silicone
- Process
- Compress+conductive+Printing+packing
- Size
- 3*4cm
- Hardness
- 30A-80A
- Function
- Push button
- Certification
- ISO9001
- Packing
- opp bag
Review
Description
Silicone Keypads / Handheld Instruments A detector silicone keypad is a mechanical switch assembly disguised as a rubber mat: the web flexes, the conductive pad closes the circuit on the PCB, and the legend tells the operator which function they just triggered. Three numbers decide whether it works in the field: actuation force, contact resistance and key life. All three are set by geometry and conductive printing, and all three can be measured before the tool is cut. The electrical function is decided by four mechanical details. Web thickness and diameter set the actuation force and the snap. A flat web feels mushy; a properly formed cone gives the click the operator uses as confirmation. A carbon pill or a printed conductive trace bridges the PCB pads. Pill height and flatness decide whether the contact is made at the centre of travel or only at the bottom. If the operator cannot read the key under a glove or in low light, the switch has failed regardless of its electrical life. Legend contrast and size are functional, not decorative. Handheld detectors see dust, splash and cleaning agents. A moulded perimeter lip, or a sealed gasket, is what stops the contamination that turns a keypad into a sticky one. Targets are agreed with the electronics team, because contact resistance depends on the PCB finish and the pad area as much as on the keypad. Acceptance is measured on the assembled instrument. Two ways to make the contact, with different cost and life profiles. A moulded conductive pad with high carbon loading. Robust and repeatable, and the usual choice where the key is pressed often and the contact pad is generous. Screen-printed conductive silicone ink, thinner and cheaper to tool, but the trace is a coating and its resistance depends on print thickness and cure. Legend ink sits on the surface and needs a clear coat or a moulded-in legend to survive solvents and abrasion. Laser-etched legends are the most durable option on dark keys. Light guides moulded into the silicone, or translucent keys over LEDs, let the keypad work in low light without cutting a window that weakens the seal. Where the instrument also needs a sealed display window, the groove and compression rules in small molded rubber gaskets for instrument sealing apply. Keypads are validated as assemblies. A force-deflection curve on the moulded mat, a resistance check on the assembled PCB and a life test on the actual switch stack are worth more than any single dimension on the drawing. We mold under IATF 16949 and ISO 9001 quality systems with ISO 14001 environmental management. Batches are checked for web dimensions, hardness, legend registration and conductive pad height, and life testing follows the agreed cycle count rather than a best-case sample. Four steps, starting with the PCB pads rather than the artwork. Pad positions and finish, the functions to be labelled, the enclosure sealing requirement and the operating environment. We set web geometry, pill height and legend method against the target force and the IP requirement. Samples on the real PCB for force-deflection, contact resistance and feel, with legend variants for the operator check. Multi-cavity tool, first article, batch checks on web and pad, life test to the agreed cycle count. Questions from instrument designers and purchasing teams. A pill when the key is pressed often and the pad is generous; a printed trace when thickness and cost matter more and the duty is lighter. The resistance target usually settles the argument. 150-300 g covers most handheld instruments. The right number depends on whether the operator wears gloves and whether the device sits in a pocket where light keys misfire. Printed legends with a clear coat survive normal handling; laser-etched or moulded-in legends survive solvents and heavy abrasion. The choice is usually made by the cleaning agent the user applies. Yes, with a moulded perimeter lip and a housing that gives it a defined compression. The rating belongs to the assembled instrument, so the test is run on the enclosure. Tell us the pad finish, the functions to label and the environment the instrument works in. We will set the web, the contact method and the legends, and check the feel on a prototype stack.Detector Silicone Keypad with Conductive Screen Printing: Actuation, Contact and Life

How a Detector Silicone Keypad Makes Contact
The web is the spring
The conductive pad closes the circuit
The legend is part of the switch
The sealing lip keeps it working

Conductive Silicone Keypad: Force, Travel and Contact Window
Parameter Typical design window Why it matters Actuation force 150-300 g for handheld detectors Lighter misfires in a pocket; heavier tires the operator Travel 0.5-1.5 mm Enough snap for feedback, short enough to seal Contact resistance Agreed target per design, commonly a few hundred ohms or less for carbon Rising resistance reads as a dead or intermittent key Key life 100,000 to 1,000,000 cycles depending on web design Web fatigue, not the legend, is usually the limit Pill or trace height Set so contact is made before the key bottoms out Contact only at full travel feels dead and wears faster Sealing Moulded lip or gasket to the agreed IP level Dust and cleaning agents are the usual field killers Screen Printing Silicone Button: Conductive Ink and Carbon Pills
Carbon pill
Printed conductive trace
Legend printing and protection
Backlighting

From Key Layout to Serial Detector Silicone Keypad

Four Steps to a Production Detector Silicone Keypad
Send the PCB and the key layout
Force and travel review
Prototype and stack test
Production with life testing
Detector Silicone Keypad FAQ
Carbon pill or printed conductive trace?
What actuation force suits a handheld detector?
How long will the legends last?
Can the keypad be sealed to IP65?
Send the PCB pads and the key layout
