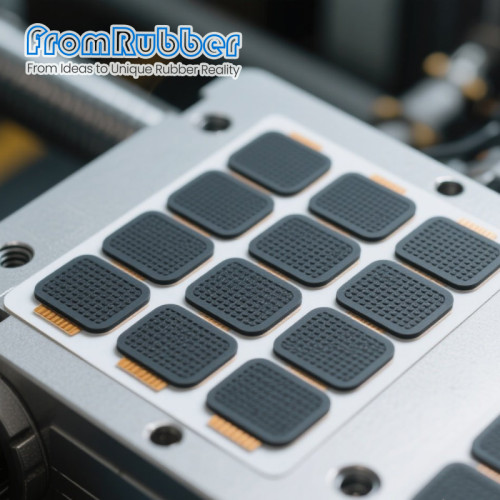

Silicone Thermal Pad High Conductivity Thermally Conductive Pads

Item specifics

Design: Follow 3D Drawing Or Physical Object

Printing: Molding,Laser Etching

Feature: High Conductivity Thermally Conductive

MOQ: 100 Square meters

Application: Hair Straighteners & Curlers

Review

Description

Premium Silicone Thermal Pads | High Conductivity Cooling Solutions

Premium Silicone Thermal Pads

High-Conductivity Cooling Solutions for Demanding Electronics

Get free consultation

Our premium Silicone Thermal Pads are engineered to provide superior thermal management solutions for a wide range of electronic applications. With exceptional thermal conductivity up to 12W/mK, these pads effectively dissipate heat from critical components, ensuring optimal performance and extended lifespan.

Designed to replace messy thermal pastes, our high-conductivity thermal pads offer a clean, reliable solution that maintains consistent performance over time. The flexible silicone material conforms perfectly to uneven surfaces, eliminating air gaps and providing maximum heat transfer efficiency.

Whether you're working with high-performance computing systems, power electronics, LED lighting, or automotive applications, our thermally conductive pads deliver unmatched thermal management in a convenient, easy-to-apply format.

Technical Specifications

Silicone Thermal Pads in different thicknesses

Parameter	Standard Grade	Premium Grade
Thermal Conductivity	8.0 W/mK	12.0 W/mK
Thickness Range	0.5mm - 5.0mm	0.5mm - 5.0mm
Hardness (Shore OO)	40-60	40-60
Dielectric Strength	>10 kV/mm	>10 kV/mm
Volume Resistivity	>1.0 x 10^14 Ω·cm	>1.0 x 10^14 Ω·cm
Operating Temperature	-50°C to +200°C	-50°C to +200°C
Certifications	RoHS, REACH	RoHS, REACH, UL

Industry Applications

Computing

CPUs, GPUs, VRMs in Gaming PCs, Workstations, and Servers. Our thermal pads ensure optimal heat dissipation for high-performance computing components.

Power Electronics

IGBTs, MOSFETs, Power Supplies, Inverters, and Converters. Maintain safe operating temperatures in power-dense electronic systems.

LED Lighting

Heat dissipation for high-power LED modules and drivers. Extend LED lifespan and maintain brightness with effective thermal management.

Automotive

ECUs, Battery Management Systems, LED headlights, Infotainment systems. Reliable thermal solutions for demanding automotive environments.

Proven Performance

Independent testing shows our thermal pads outperform competitors by 10-15°C under identical load conditions.

95°C

Competitor A

85°C

Competitor B

75°C

8W/mK Pad

65°C

12W/mK Pad

Performance Advantages

Components run 10-15°C cooler than with standard thermal pads
20% longer component lifespan with reduced thermal stress
Zero performance throttling even under heavy loads
Consistent thermal conductivity over 5,000+ hours of operation
Reduced system noise due to lower fan speeds
Increased system reliability in extreme environments

Frequently Asked Questions

How do I choose the right thickness?

Measure the gap between your component and heatsink. Choose a pad thickness slightly greater than the measured gap to ensure proper compression and filling (typically 0.1-0.3mm over).

Are these pads electrically insulating?

Yes! All our standard Silicone Thermal Pads provide excellent electrical insulation, protecting your components from shorts.

Can I reuse a thermal pad?

We do not recommend reuse. Compression during installation optimizes the interface; reusing may compromise performance.

How do your pads compare to thermal paste?

Pads offer easier application, no mess, no pump-out, consistent long-term performance, and inherent gap-filling capabilities. High-conductivity pads like ours match or exceed the performance of many pastes.
